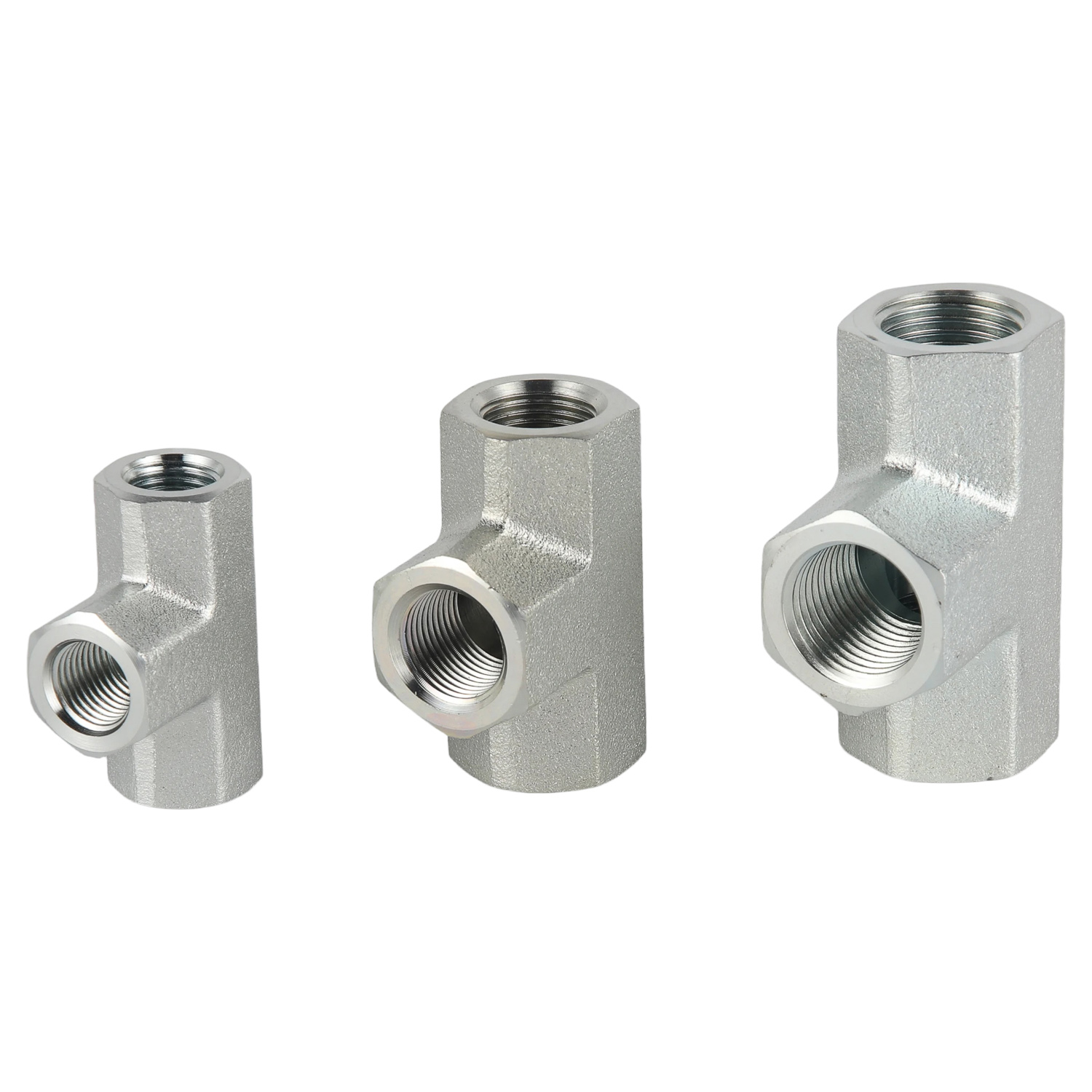

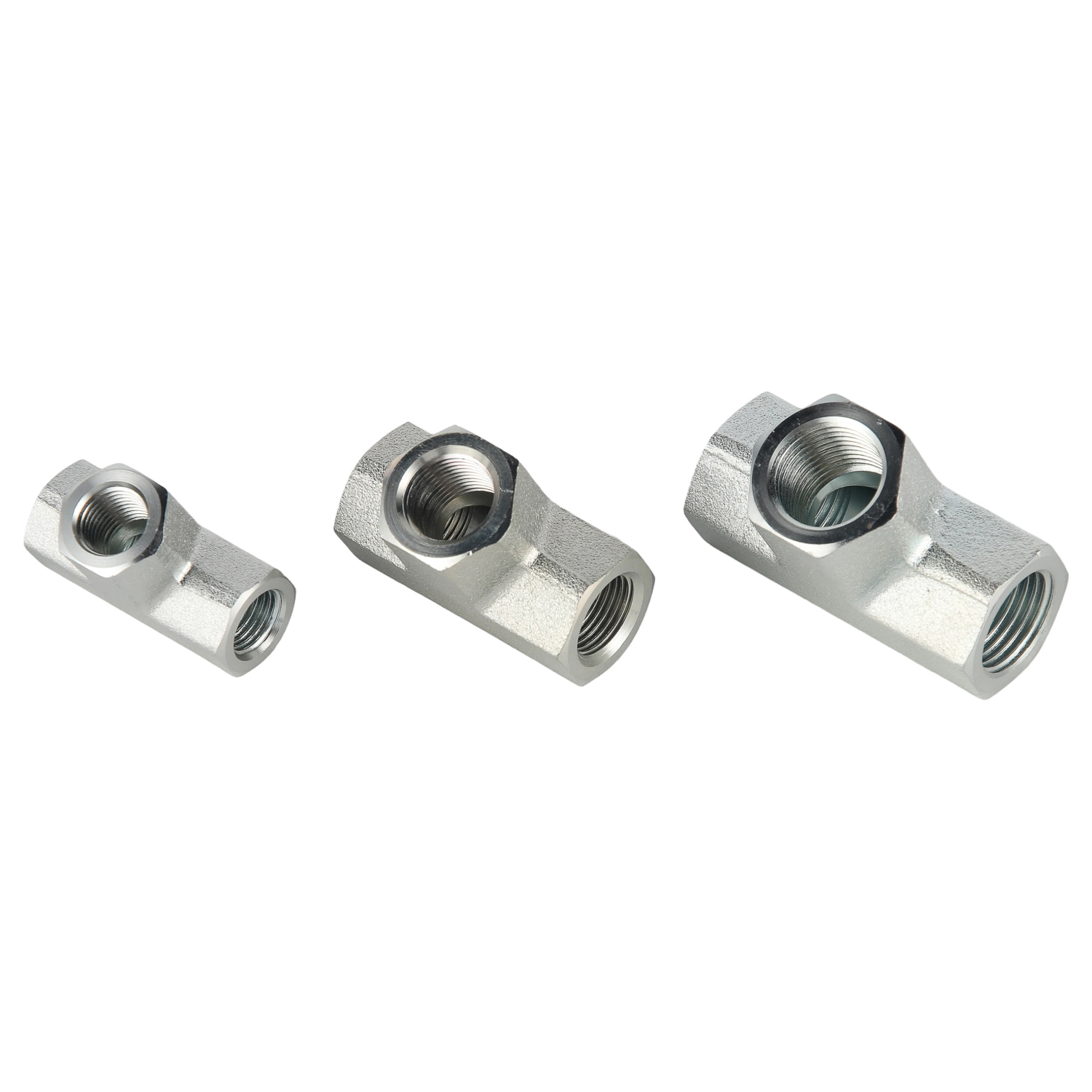

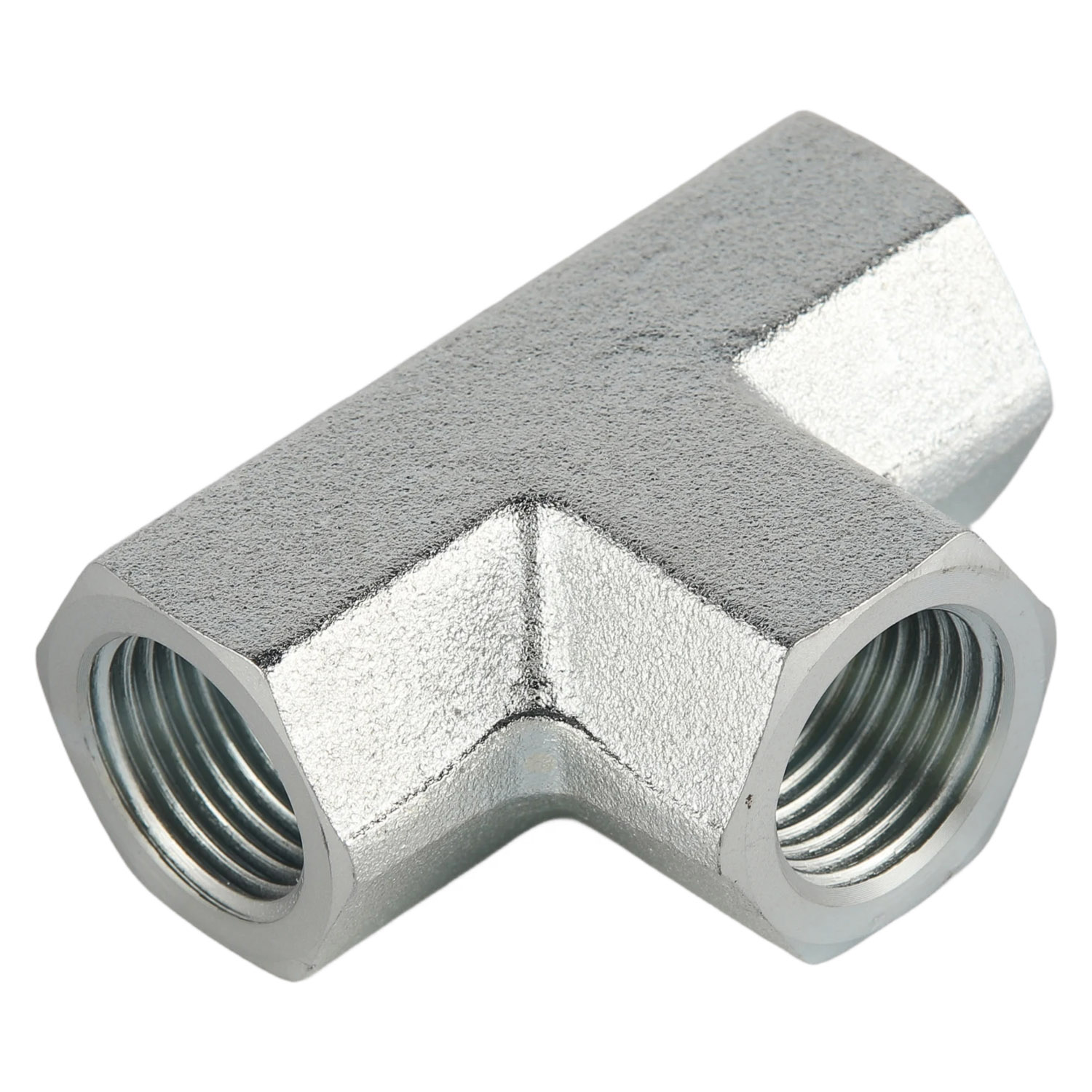

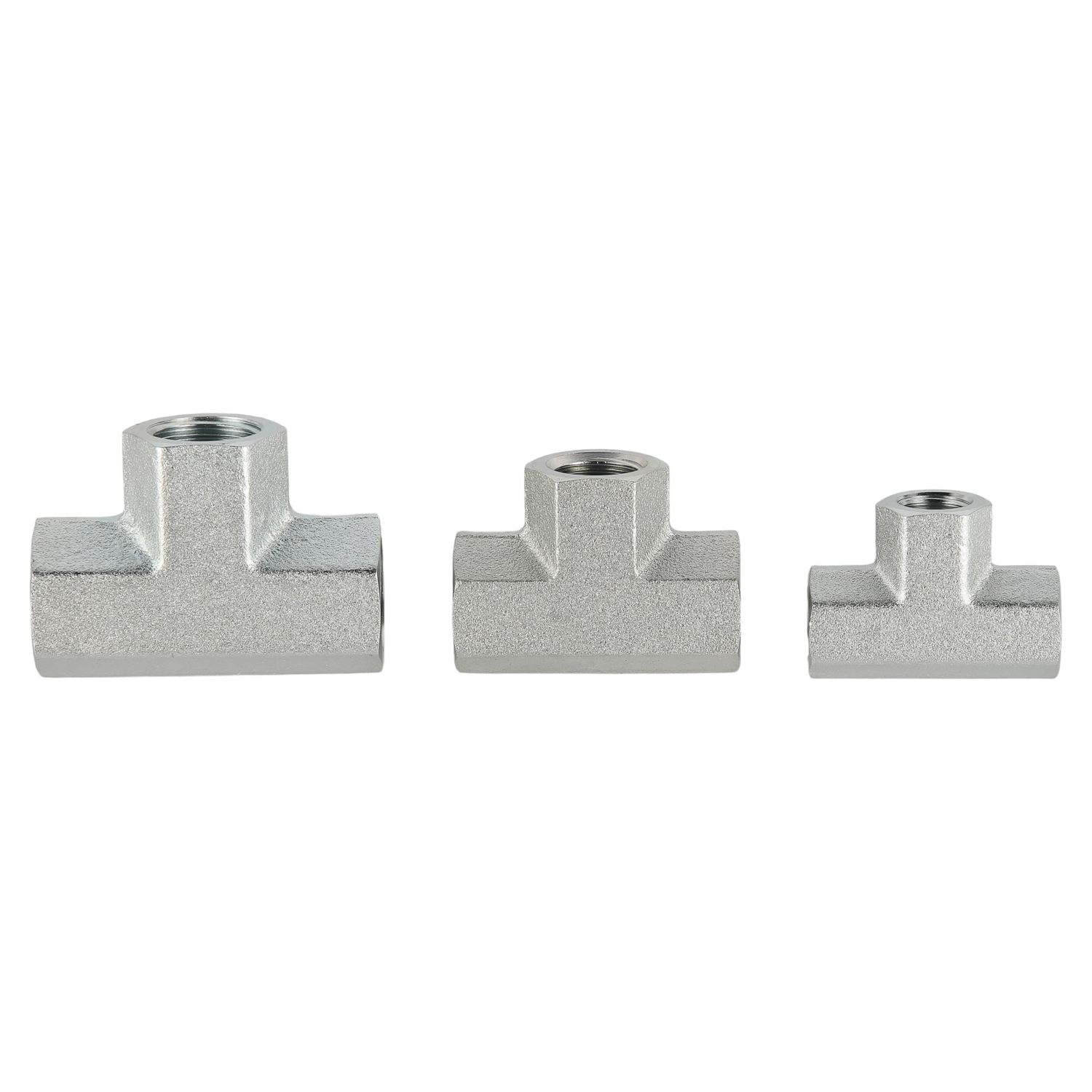

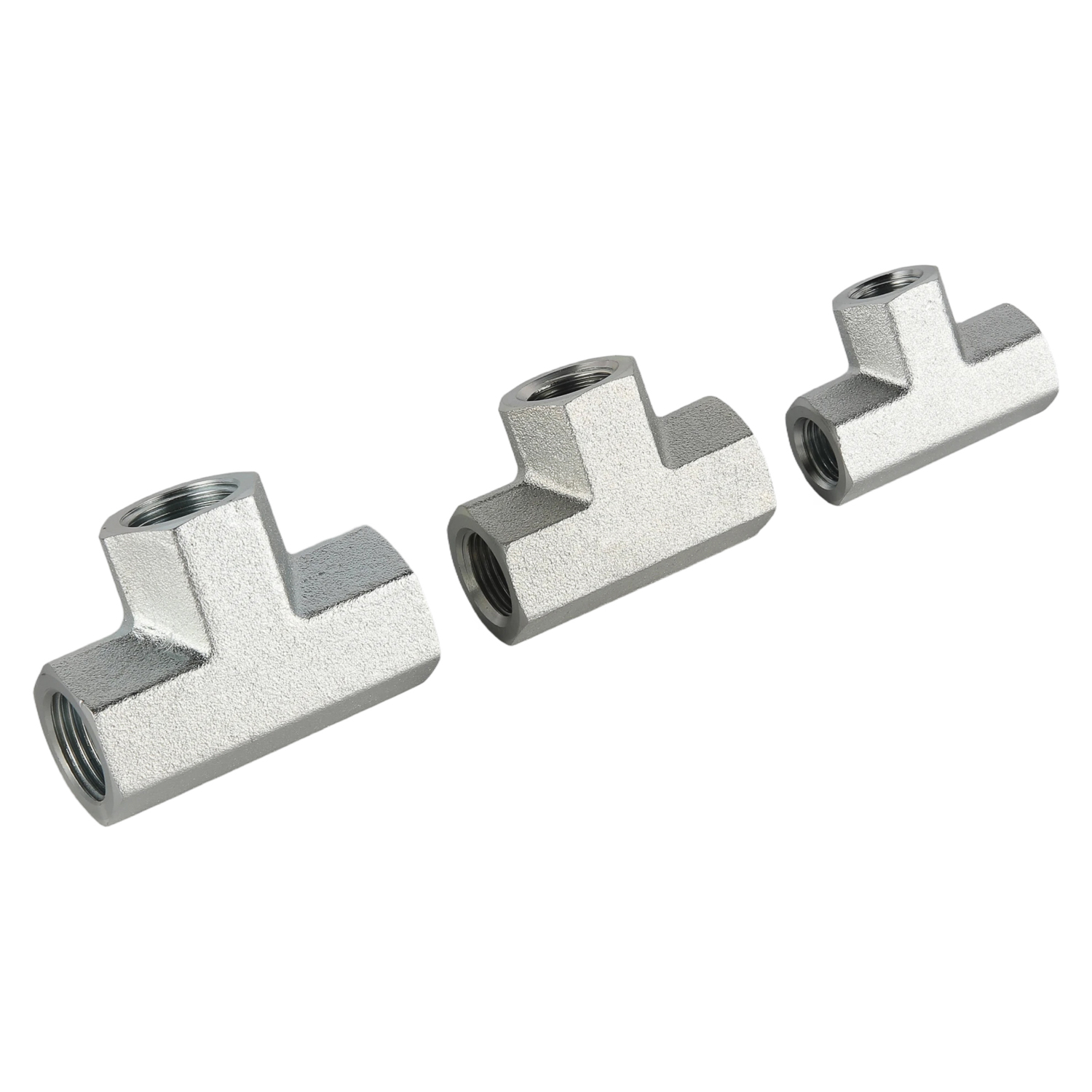

The GT-PK Series BSPT Female Tee is a precision-machined three-way hydraulic fitting designed for BSPT tapered thread pipeline systems. The fitting features three female BSPT threaded ports, allowing fluid to be distributed or combined through a compact tee configuration.
The BSPT tapered thread design provides reliable metal-to-metal sealing when connected with compatible male threaded fittings, helping reduce leakage risks in hydraulic and industrial piping systems. Its compact structure allows efficient installation where space is limited while maintaining high mechanical strength.
Manufactured from premium carbon steel or stainless steel, the GT-PK series offers excellent pressure resistance and corrosion protection. Zinc-plated and other surface treatment options are available to improve durability under harsh working conditions. These fittings are suitable for hydraulic oil, compressed air, gas, water, and other compatible industrial fluids.
Three-way BSPT female threaded connection
BSPT tapered thread for reliable metal-to-metal sealing
Compact tee design for pipeline branching
Precision-machined threads for secure installation
High pressure and excellent mechanical strength
Carbon steel and stainless steel material options
Zinc-plated surface for enhanced corrosion resistance
Suitable for hydraulic, pneumatic, gas, and water systems

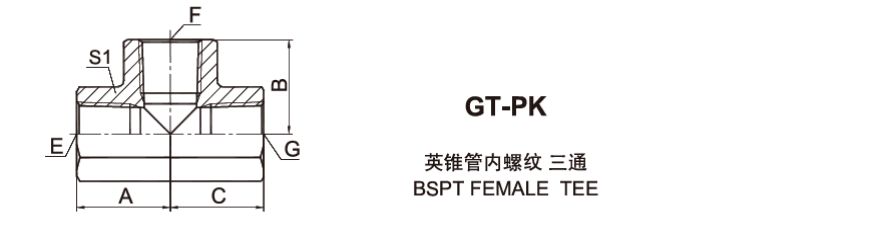

| PART NO. | T H R E A D | DIMENSIONS | |||||||||
| E | F | G | A | B | C | S1 | |||||
| GT-02PK | Rc1/8"X28 | Rc1/8"X28 | Rc1/8"X28 | 20 | 20 | 20 | 16 | ||||
| GT-04PK | Rc1/4"X19 | Rc1/4"X19 | Rc1/4"X19 | 22.5 | 22.5 | 23 | 19 | ||||
| GT-06PK | Rc3/8"X19 | Rc3/8"X19 | Rc3/8"X19 | 26.0 | 26.0 | 26 | 24 | ||||
| GT-08PK | Rc1/2"X14 | Rc1/2"X14 | Rc112"X14 | 31.0 | 31.0 | 31 | 27 | ||||
| GT-12PK | RC314"X14 | Rc3/4'X14 | Rc3/4"X14 | 34.0 | 34 | 34 | 33 | ||||
| GT-16PK | Rc1"X11 | Rc1"X11 | Rc1"X11 | 42.0 | 42 | 42 | 41 | ||||
| GT-20PK | Rc1.1/4"X11 | RC1.1/4"X11 | Rc1.1/4"X11 | 48.0 | 48 | 48 | 50 | ||||
| GT-24PK | Rc1.1/2"X11 | Rc1.1/2"X11 | Rc1.1/2"X11 | 53.0 | 53 | 53 | 60 | ||||
| GT-32PK | Rc2"X11 | Rc2"X11 | Rc2"X11 | 62.0 | 62 | 62 | 70 | ||||
GT-PK Series BSPT Female Tee is widely used in hydraulic systems, pneumatic equipment, gas transmission pipelines, water supply systems, construction machinery, industrial automation, and general fluid control applications. It provides reliable three-way branch connections for medium and high-pressure piping systems.
