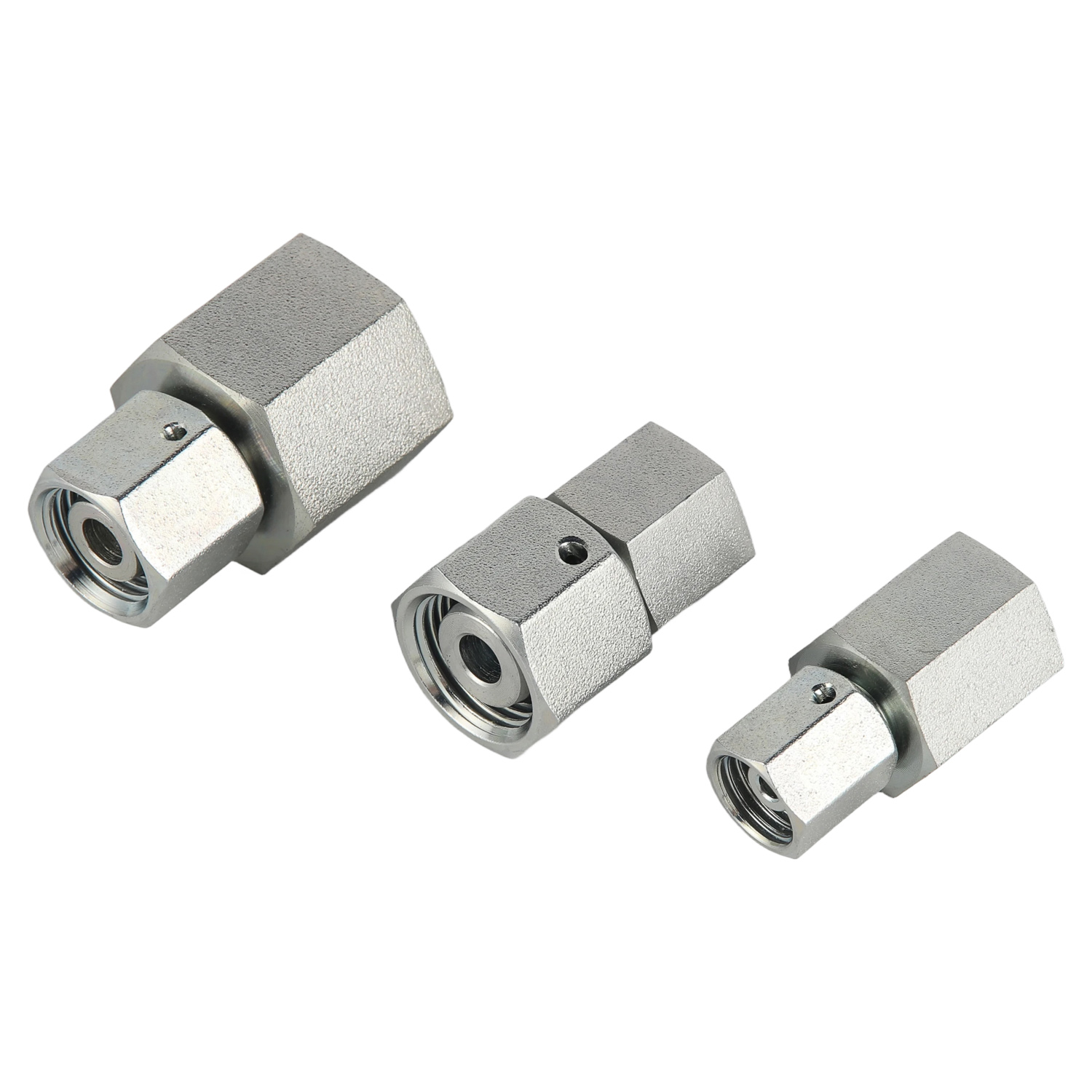

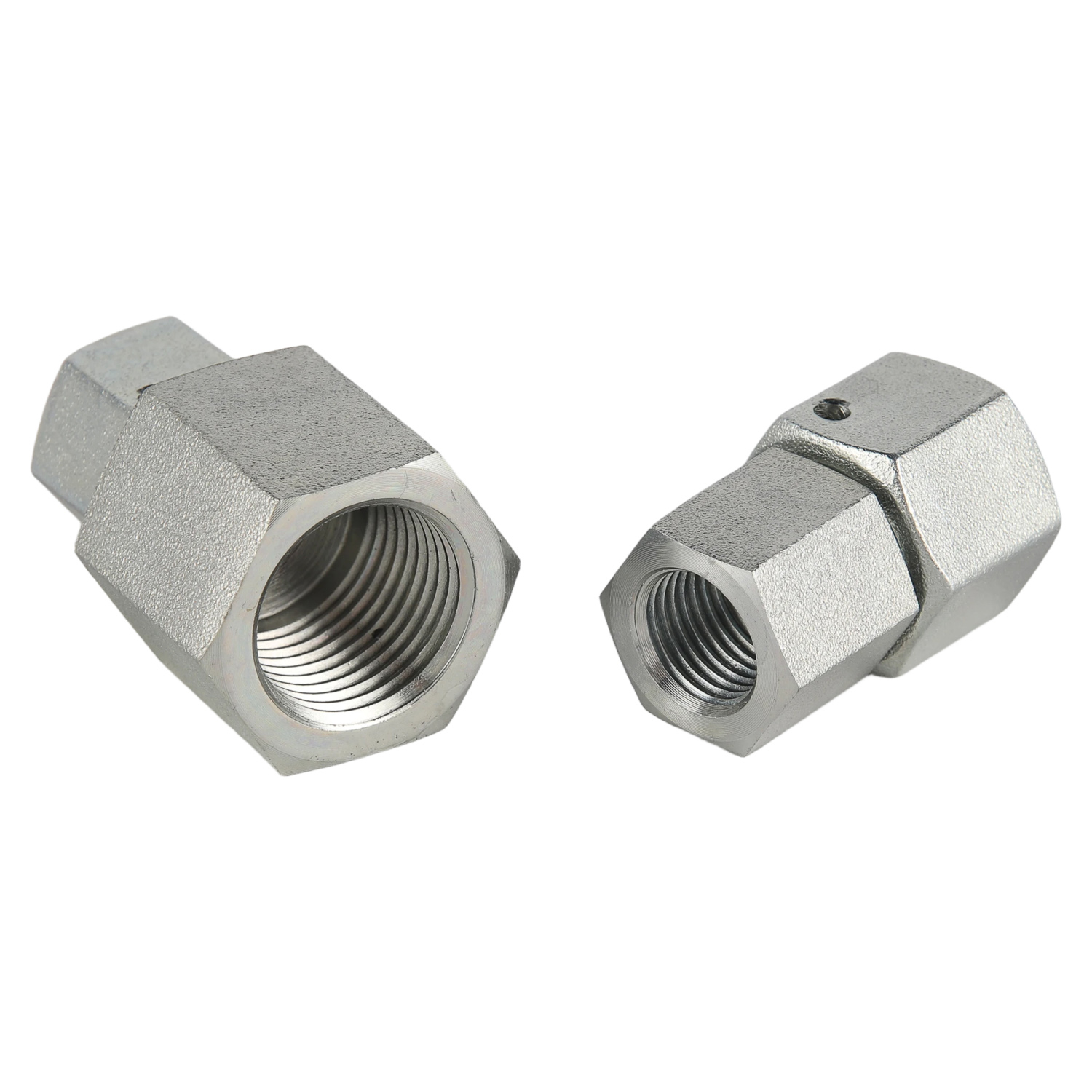

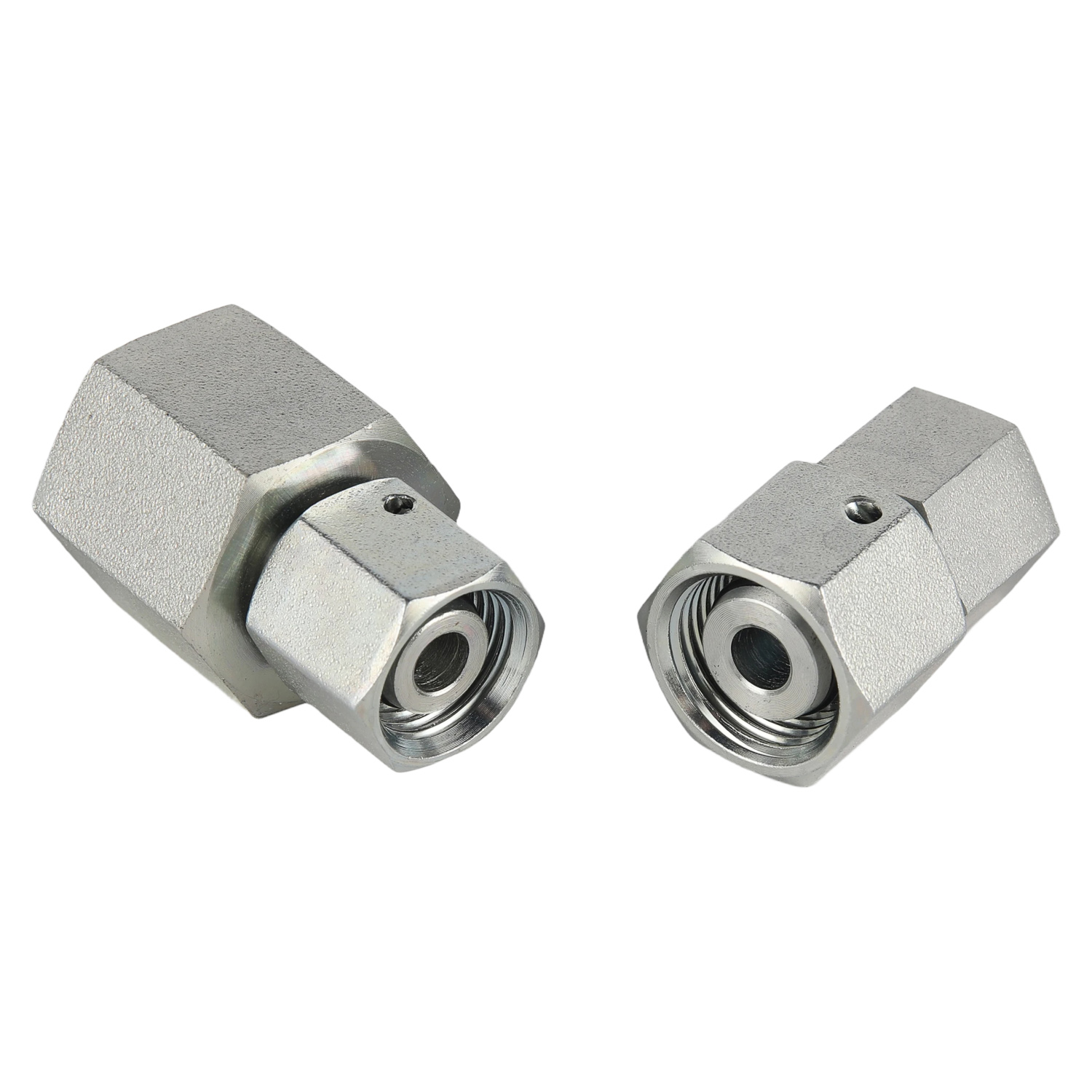

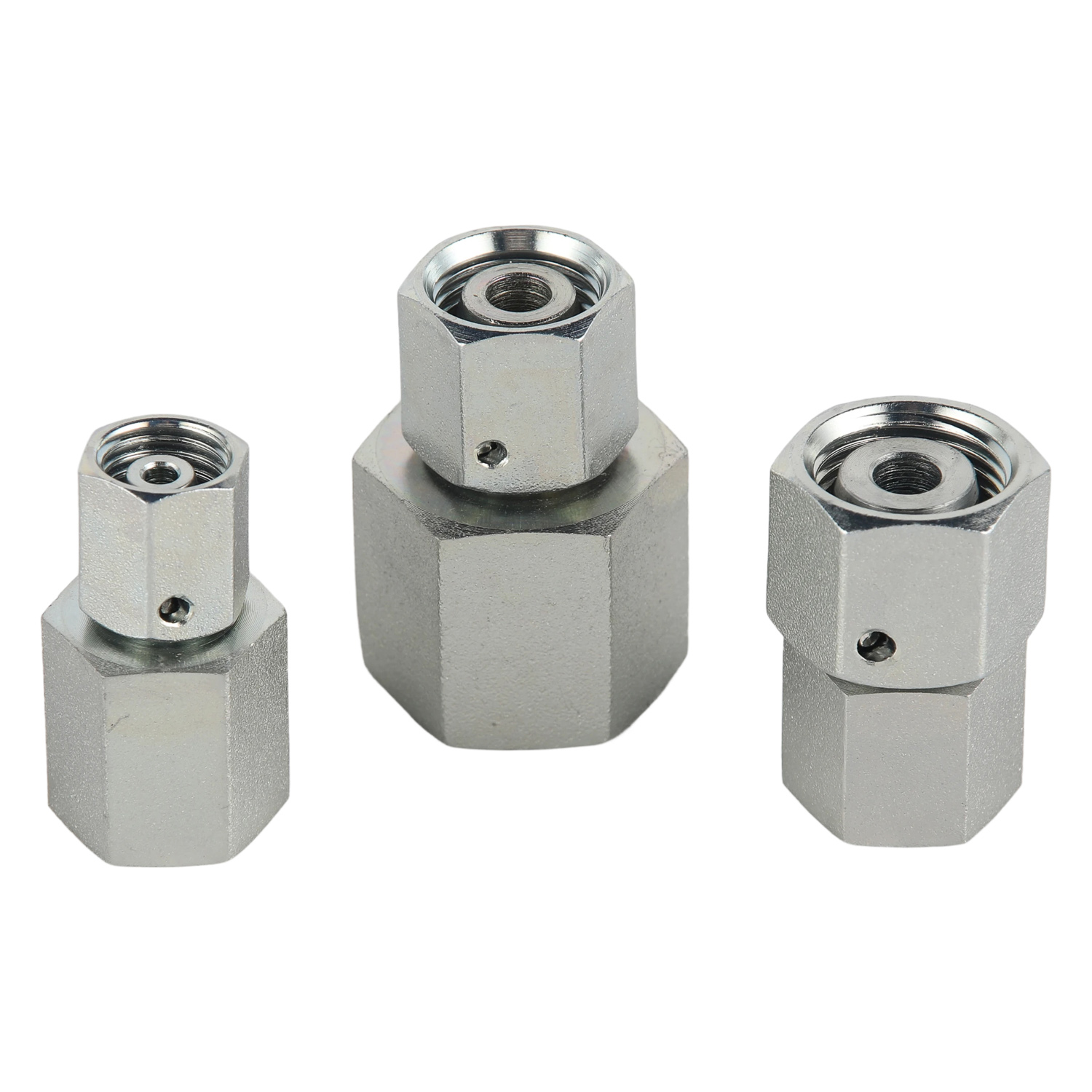

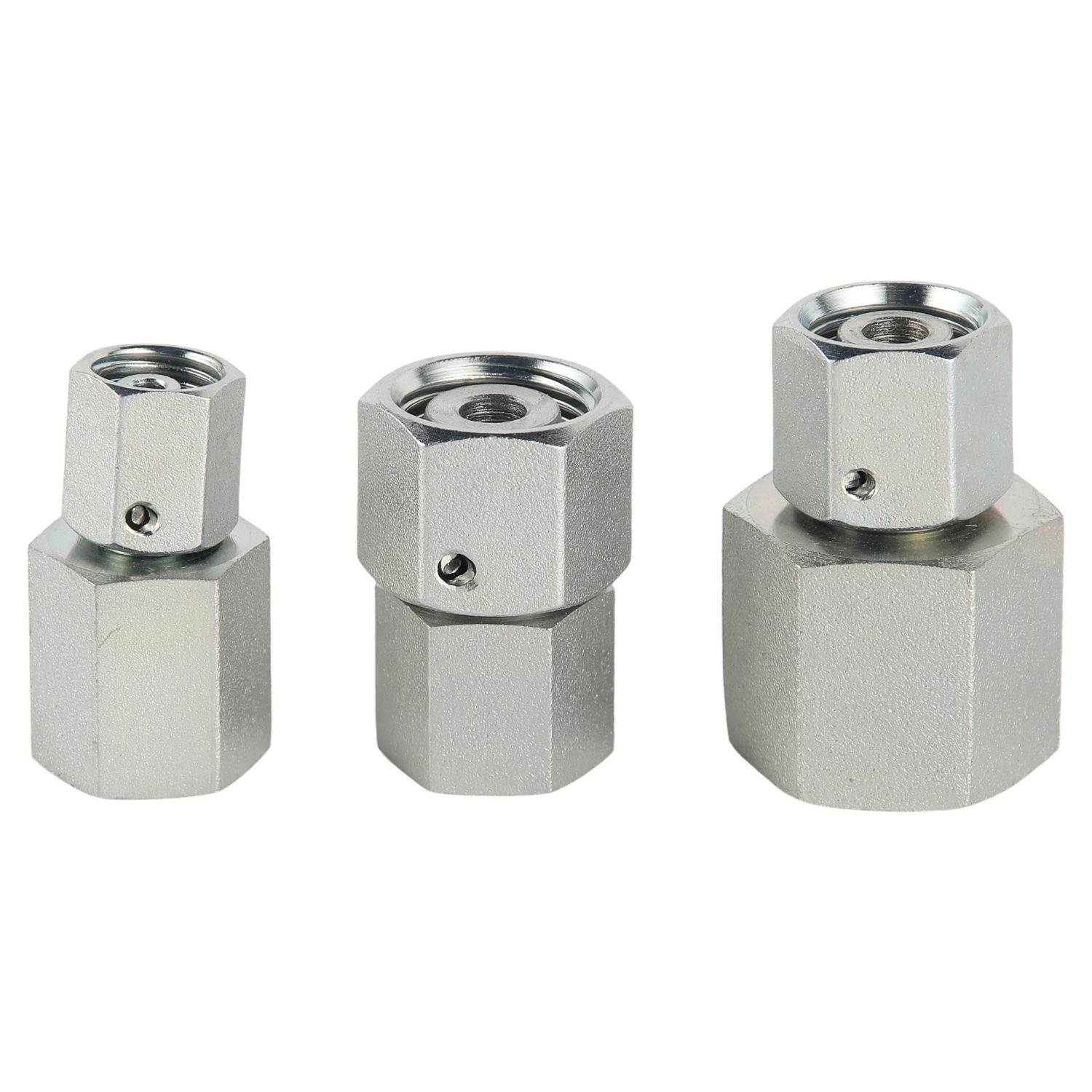

The 7BC-GDK/S and 7BD-GDK/S Series BSP Pressure Gauge Connectors are designed to provide secure and reliable connections between hydraulic pipelines and pressure gauges. The fittings feature a BSP male threaded connection combined with a DKI steel sealing washer, ensuring stable sealing performance without leakage during pressure monitoring.
The straight-through flow design allows unrestricted fluid passage and minimizes pressure loss, helping maintain accurate pressure readings. The sleeve-type installation structure simplifies assembly while ensuring a secure connection in high-pressure hydraulic systems.
Manufactured from premium stainless steel, these pressure gauge connectors provide excellent mechanical strength, corrosion resistance, and durability. They are suitable for continuous operation in hydraulic equipment, industrial machinery, pressure testing systems, and fluid control applications.
BSP male thread for pressure gauge connections
DKI steel sealing ring for reliable leak-free sealing
Straight-through internal passage for smooth fluid flow
Sleeve-type installation for convenient assembly
Excellent corrosion resistance and long service life
Stainless steel construction for demanding environments
Suitable for high-pressure hydraulic systems
Ideal for pressure monitoring and testing applications

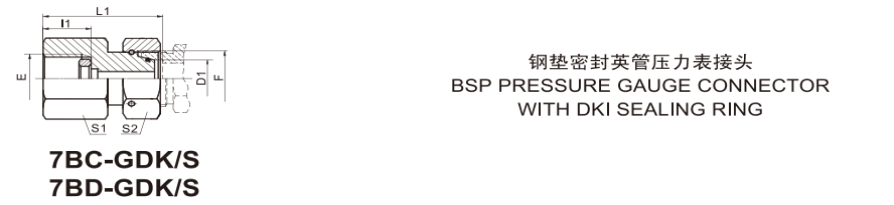

| PART NO. | T H R E A D | TUBE O.D. | DIMENSIONS | SEALING RING DKI | MPa | |||||||||
| E | F | D1 | I1 | L1 | S1 | S2 | ||||||||
| 7BC-04-12GDK/S | G1/4"X19 | M12X1.5 | 6 | 14.5 | 35.5 | 19 | 14 | DP-B04DK | 31.5 L | |||||
| 7BC-04-14GDK/S | G1/4"X19 | M14X1.5 | 8 | 14.5 | 35.5 | 19 | 17 | DP-B04DK | ||||||
| 7BC-04-16GDK/S | G1/4"X19 | M16X1.5 | 10 | 14.5 | 36 | 19 | 19 | DP-B04DK | ||||||
| 7BC-04-18GDK/S | G1/4"X19 | M18X1.5 | 12 | 14.5 | 36 | 19 | 22 | DP-B04DK | ||||||
| 7BD-04-14GDK/S | G1/4"X19 | M14X1.5 | 6 | 14.5 | 35.5 | 19 | 17 | DP-B04DK | 63 S | |||||
| 7BD-04-16GDK/S | G1/4"X19 | M16X1.5 | 8 | 14.5 | 35.5 | 19 | 19 | DP-B04DK | ||||||
| 7BD-04-18GDK/S | G1/4"×19 | M18X1.5 | 10 | 14.5 | 36 | 19 | 22 | DP-B04DK | ||||||
| 7BD-04-20GDK/S | G1/4"X19 | M20X1.5 | 12 | 14.5 | 39 | 19 | 24 | DP-B04DK | ||||||
| 7BD-08-14GDK/S | G1/2"X14 | M14X1.5 | 6 | 20 | 42.5 | 27 | 17 | DP-B08DK | ||||||
| 7BD-08-16GDK/S | G1/2"X14 | M16X1.5 | 8 | 20 | 43 | 27 | 19 | DP-B08DK | ||||||
| 7BD-08-18GDK/S | G1/2"X14 | M18X1.5 | 10 | 20 | 43.5 | 27 | 22 | DP-B08DK | ||||||
| 7BD-08-20GDK/S | G1/2"X14 | M20X1.5 | 12 | 20 | 45 | 27 | 24 | DP-B08DK | ||||||
7BC-GDK/S / 7BD-GDK/S BSP Pressure Gauge Connectors are widely used in hydraulic power units, construction machinery, industrial automation equipment, pressure testing devices, fluid control systems, and general hydraulic piping. Their reliable DKI sealing structure ensures accurate pressure monitoring and dependable long-term operation in medium and high-pressure hydraulic applications.
