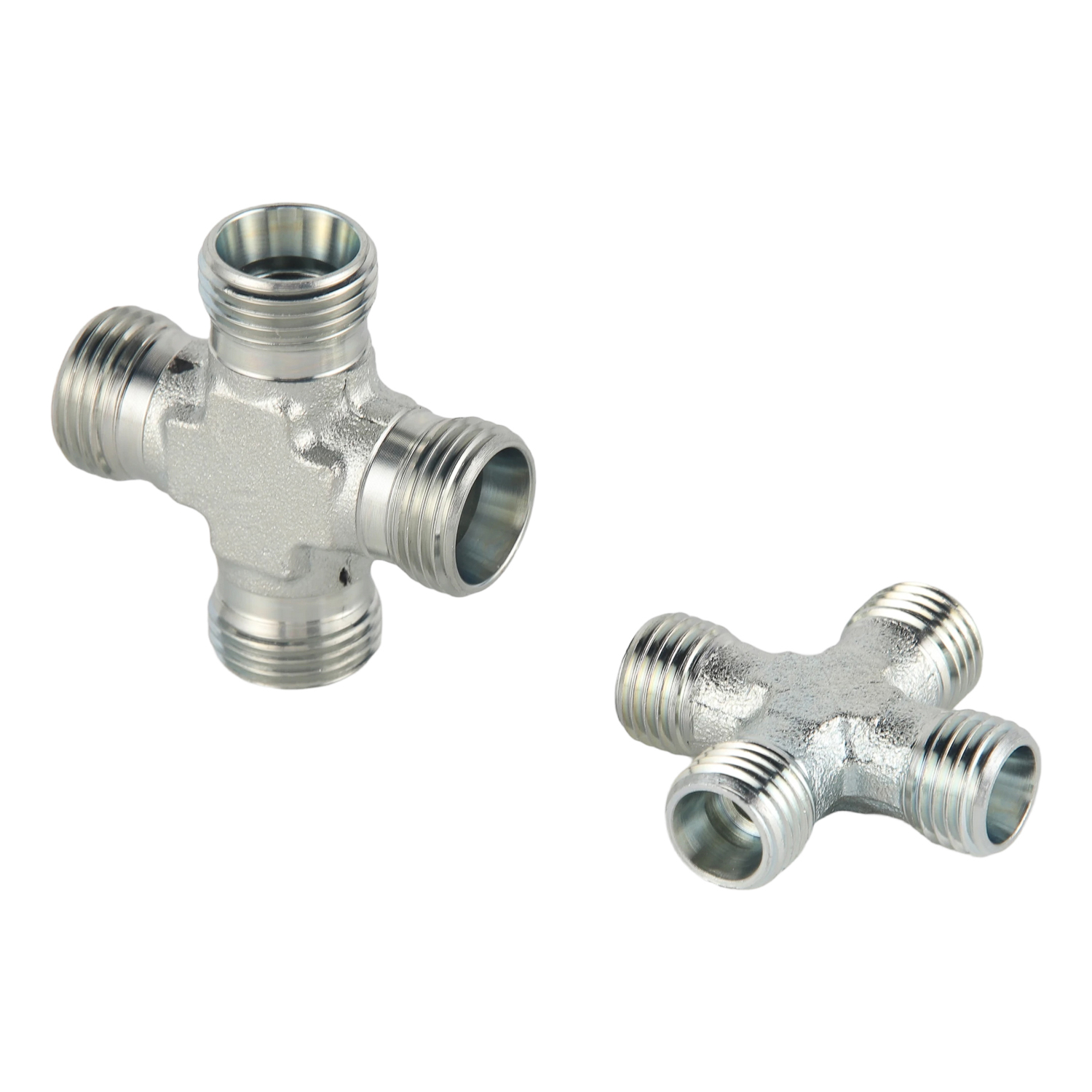

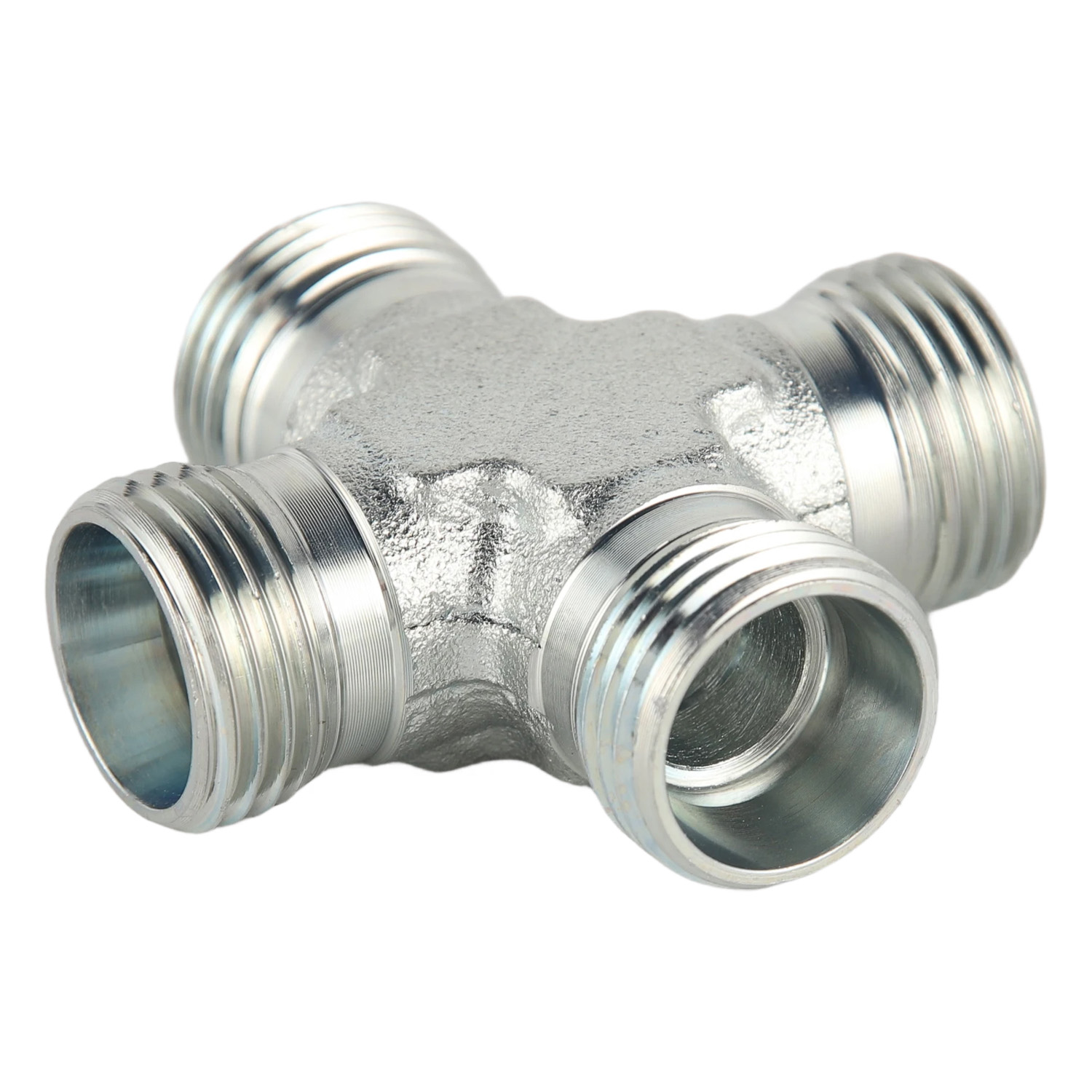

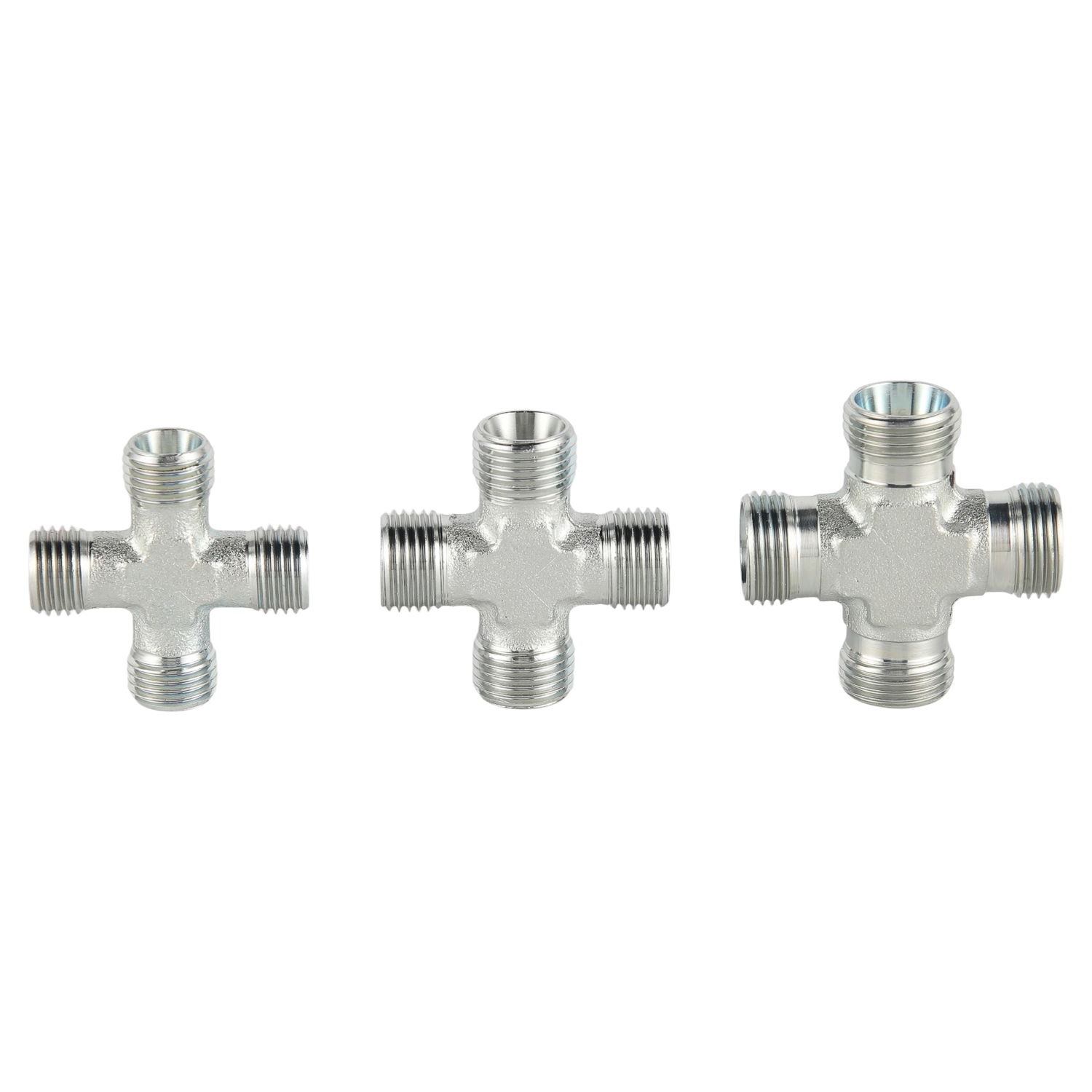

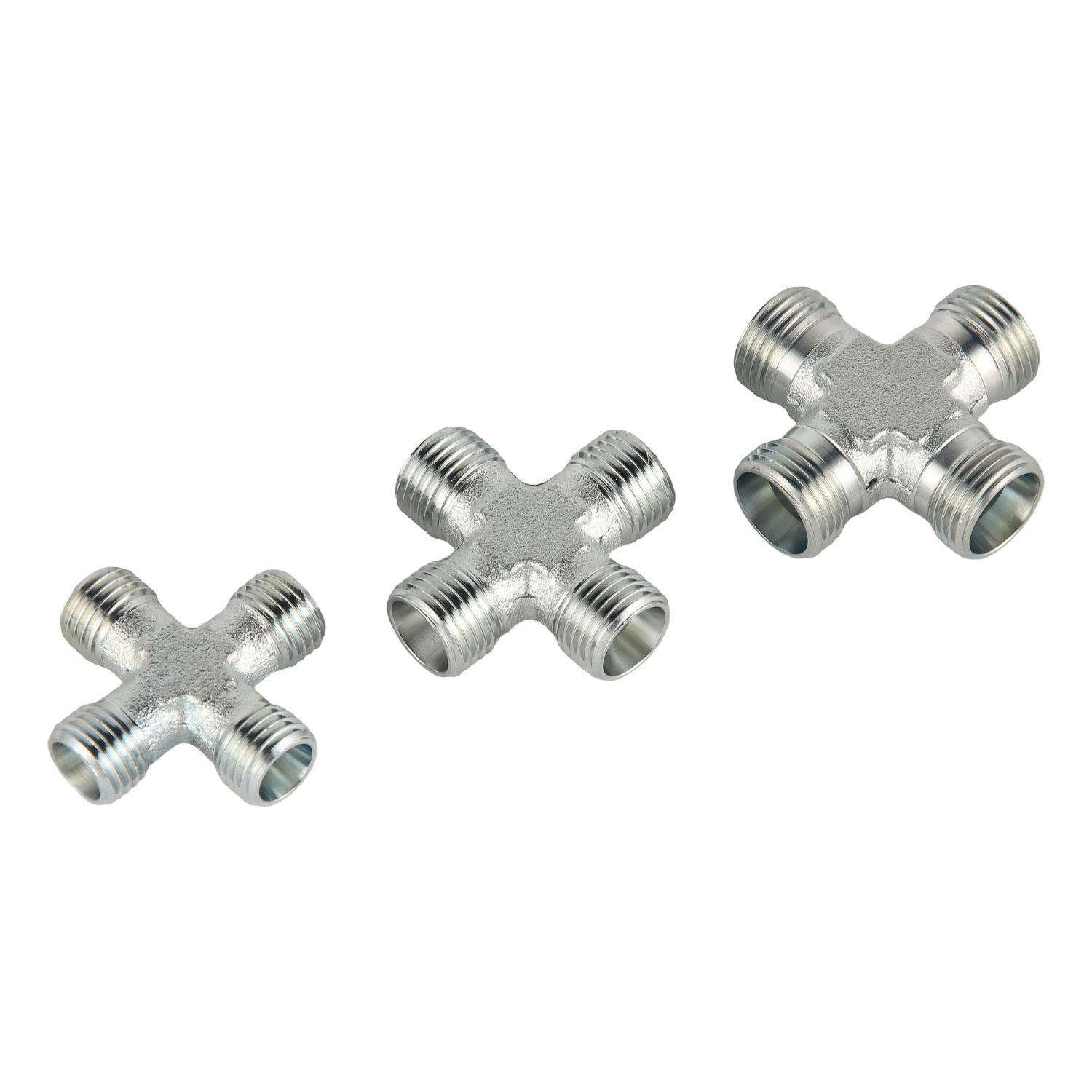

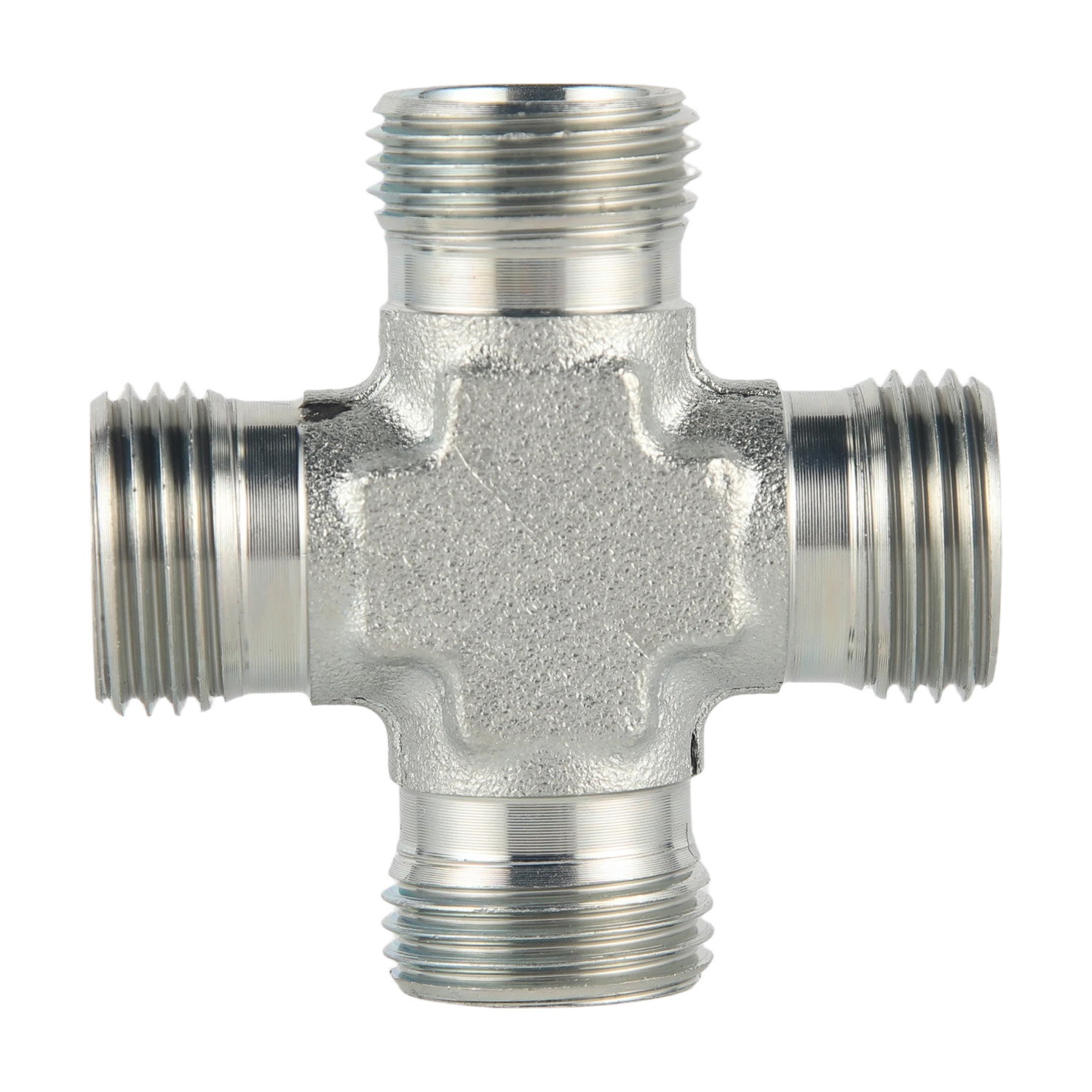

The XC / XD / XC-RN / XD-RN Series Cross Fittings are designed to connect four hydraulic pipelines from a single connection point, providing an efficient solution for hydraulic circuit distribution and fluid transfer. Their cross configuration helps simplify pipeline layouts while reducing the number of connection components required.
The standard XC and XD models provide fixed four-way connections, while the XC-RN and XD-RN versions feature locknut construction for convenient orientation adjustment during installation. Precision-machined threads ensure secure connections and reliable sealing under hydraulic operating pressure.
Manufactured from premium carbon steel or stainless steel, these fittings are available with zinc-plated or corrosion-resistant surface treatments for extended service life. They are suitable for hydraulic oil, lubricants, and other compatible industrial fluids.
Four-way hydraulic connection design
Available in standard and locknut (RN) configurations
Compact structure for efficient pipeline distribution
Precision-machined threads for secure sealing
High mechanical strength and pressure resistance
Carbon steel and stainless steel material options
Zinc-plated surface for enhanced corrosion resistance
Suitable for hydraulic and industrial fluid systems

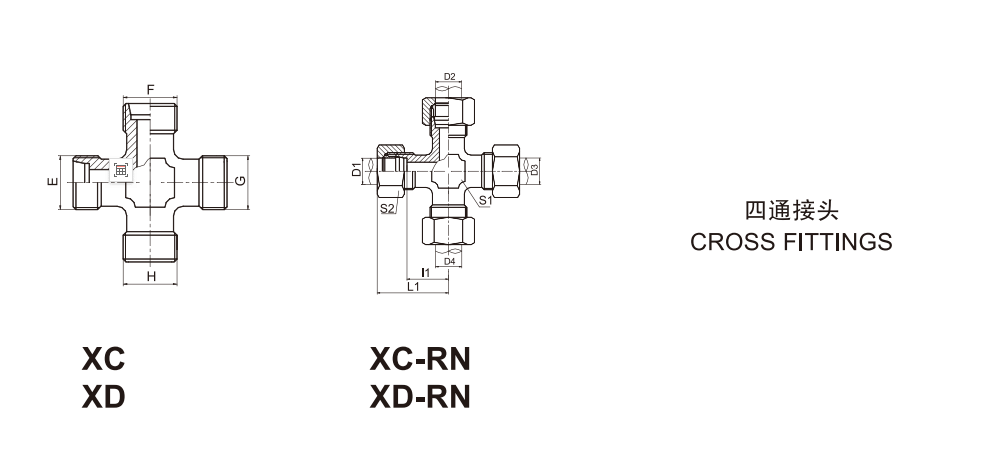

| 代 号 PART NO. | 螺 纹 T H R E A D | 管子外径TUBE O.D. | 尺 寸 DIMENSIONS | 压力等级 MPa | |||||||
| E、F、G、H | D1,D2,D3,D4 | I1 | L1 | S1 | S2 | ||||||
| XC-12 | M12X1.5 | 6 | 12 | 27 | 12 | 14 | 31.5 轻系列 L | ||||
| XC-14 | M14X1.5 | 8 | 14 | 29 | 12 | 17 | |||||
| XC-16 | M16X1.5 | 10 | 15 | 30 | 14 | 19 | |||||
| XC-18 | M18X1.5 | 12 | 17 | 32 | 17 | 22 | |||||
| XC-22 | M22X1.5 | 15 | 21 | 36 | 19 | 27 | |||||
| XC-26 | M26X1.5 | 18 | 23.5 | 40 | 24 | 32 | |||||
| XC-30 | 榨澳30X2 | 22 | 27.5 | 44 | 27 | 36 | 16 轻系列 L | ||||
| XC-36 | M36X2 | 28 | 30.5 | 47 | 36 | 41 | |||||
| XC-45 | M45X2 | 35 | 34.5 | 56 | 41 | 50 | |||||
| XC-52 | M52X2 | 42 | 40 | 63 | 50 | 60 | |||||
| XD-14 | M14X1.5 | 6 | 16 | 31 | 12 | 17 | 63 重系列 S | ||||
| XD-16 | M16X1.5 | 8 | 17 | 32 | 14 | 19 | |||||
| XD-18 | M18X1.5 | 10 | 17.5 | 34 | 17 | 22 | |||||
| XD-20 | M20X1.5 | 12 | 21.5 | 38 | 17 | 24 | |||||
| XD-22 | M22X1.5 | 14 | 22 | 40 | 19 | 27 | |||||
| XD-24 | M24X1.5 | 16 | 24.5 | 43 | 24 | 30 | 40 重系列 S | ||||
| XD-30 | M30X2 | 20 | 26.5 | 48 | 2 | 36 | |||||
| XD-36 | M36X2 | 25 | 30 | 54 | 36 | 46 | |||||
| XD-42 | M42X2 | 30 | 35.5 | 62 | 41 | 50 | |||||
| XD-52 | M52X2 | 38 | 41 | 72 | 50 | 60 | 31.5重系列S | ||||
| 注:如需带卡套及卡套螺母整套订货，则请在代号后加“RN”,如XC-30RN。 Note: In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no., for example XC-3ORN. | |||||||||||
XC / XD / XC-RN / XD-RN Series Cross Fittings are widely used in hydraulic power units, construction machinery, agricultural equipment, industrial automation systems, and fluid transmission pipelines. They provide reliable four-way connections for hydraulic circuits requiring efficient flow distribution and compact pipeline layouts.
