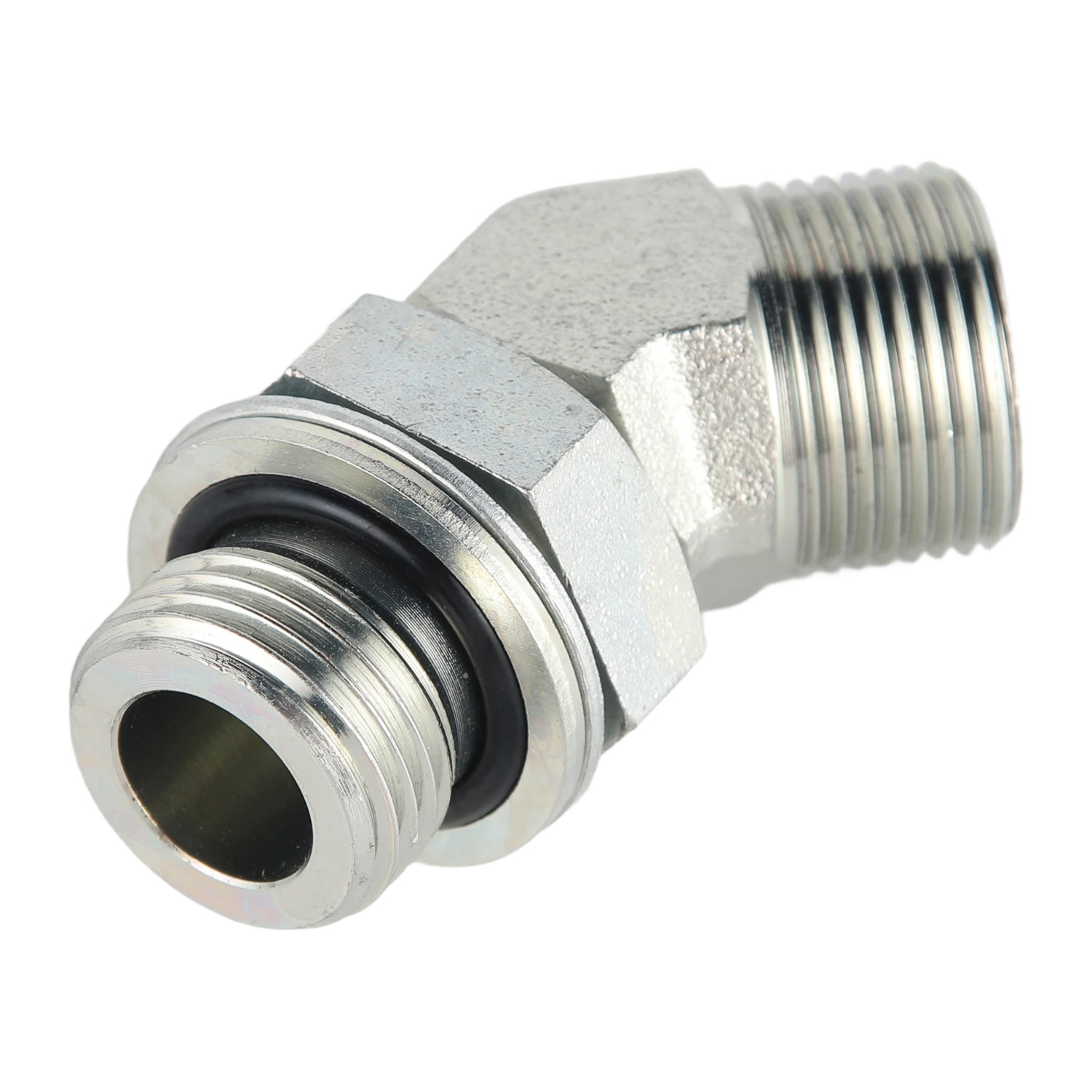

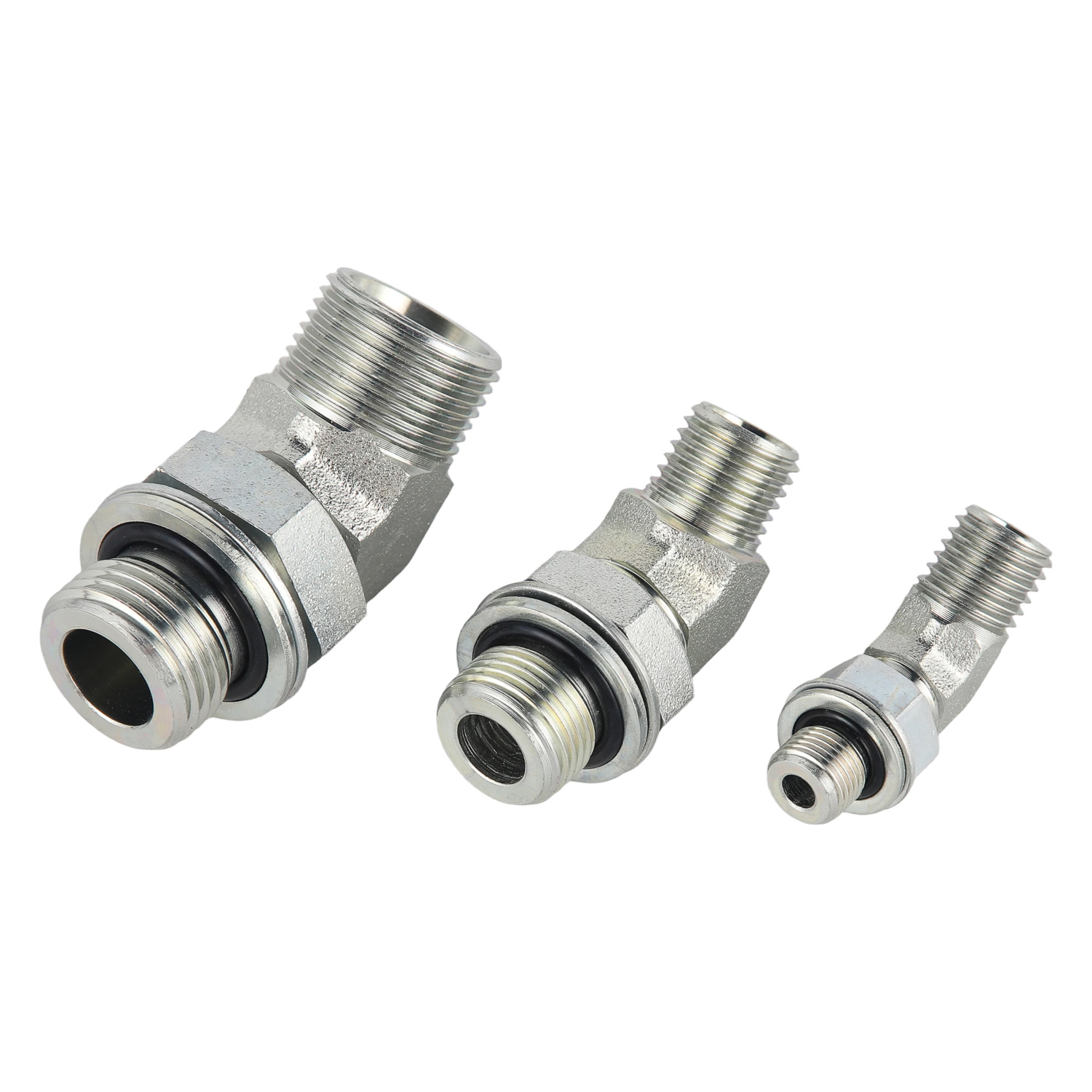

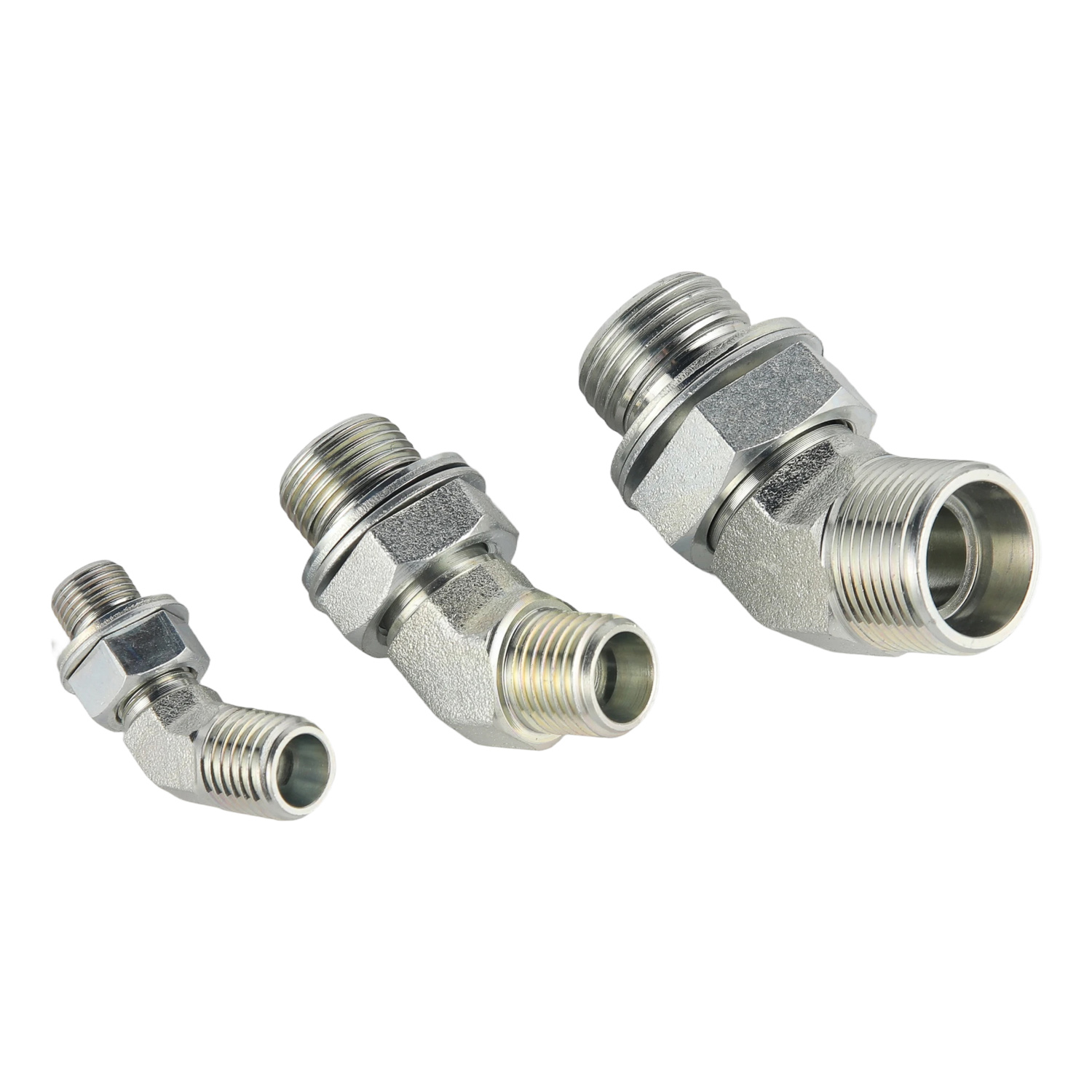

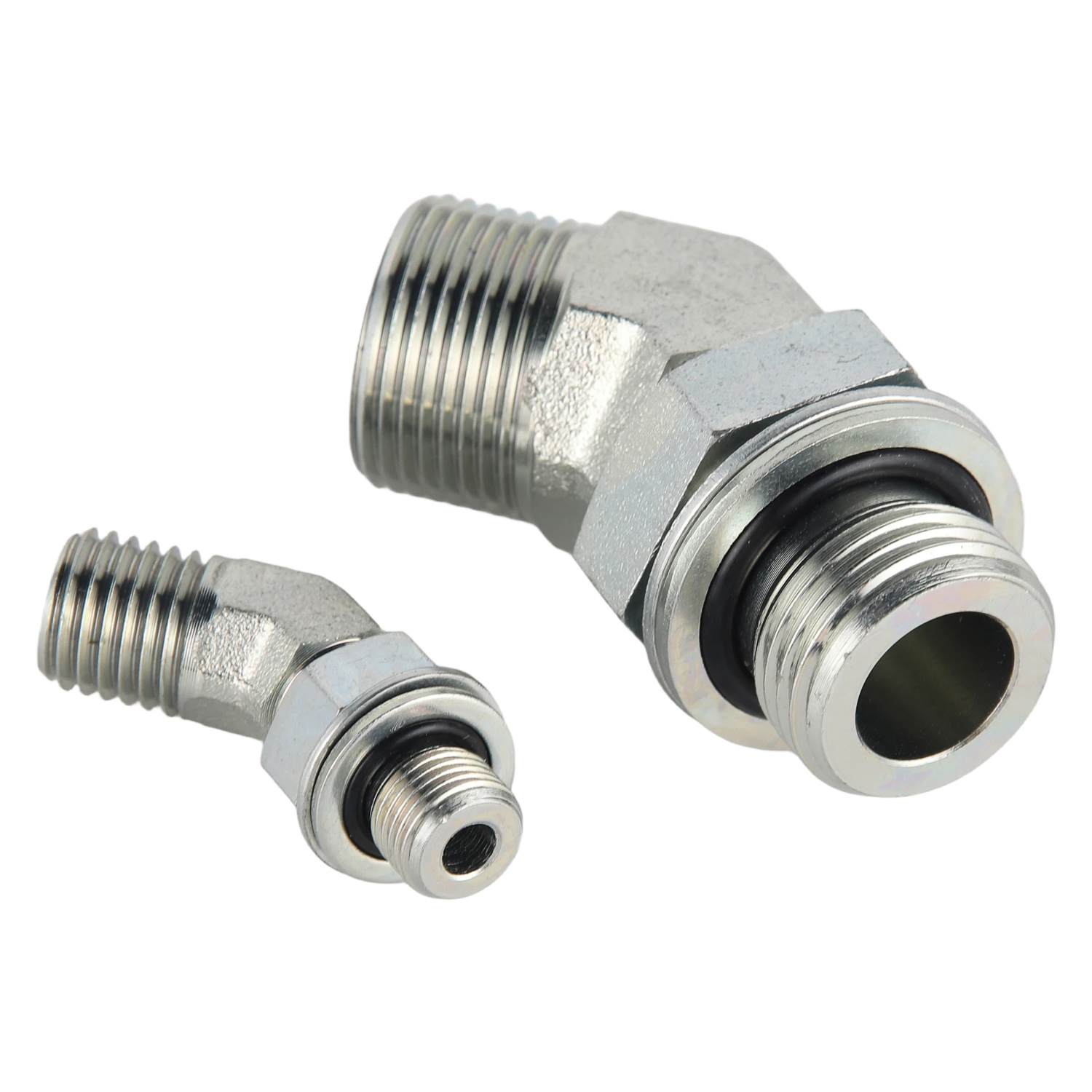

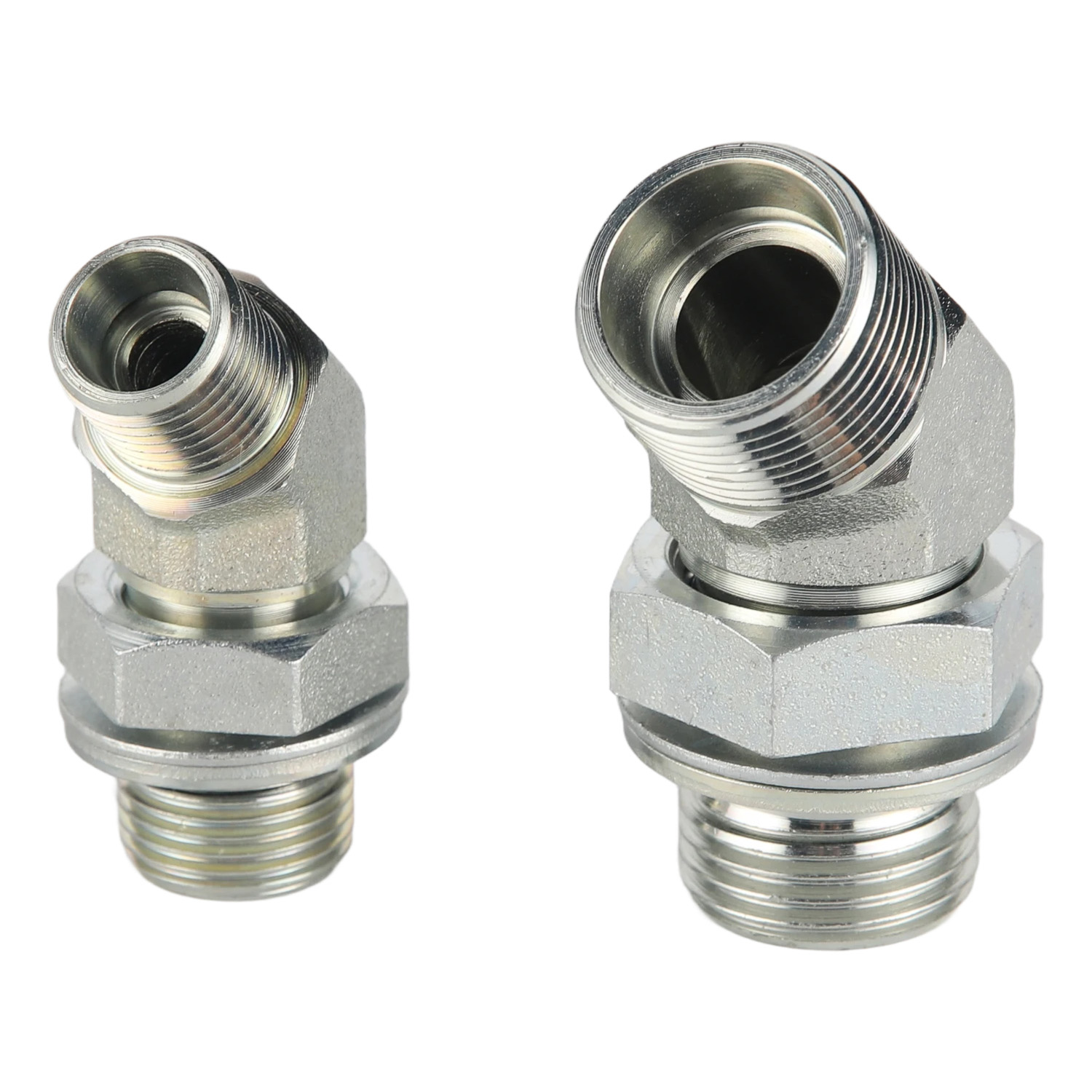

The 1CG4-OG / 1DG4-OG Series is a precision-machined 45° hydraulic elbow fitting designed with a BSP threaded adjustable stud end and an integrated O-ring sealing system. The adjustable stud design allows the fitting to be accurately positioned during installation, while the O-ring provides reliable soft sealing to minimize leakage under demanding operating conditions.
The 45-degree elbow configuration enables efficient routing of hydraulic pipelines in applications where installation space is limited or directional changes are required. The RN versions incorporate a locknut, allowing the fitting orientation to be adjusted and securely locked after installation.
Manufactured from premium carbon steel or stainless steel, these fittings provide excellent pressure resistance, mechanical strength, and corrosion protection. Zinc-plated surface treatment further enhances durability, making the fittings suitable for hydraulic power units, construction machinery, industrial automation equipment, agricultural machinery, and general fluid transmission systems.
45° elbow design for flexible pipeline routing
BSP threaded adjustable stud end
Integrated O-ring sealing for reliable leak prevention
Available in standard and RN locknut versions
Precision-machined sealing surfaces and threads
High mechanical strength and pressure resistance
Carbon steel and stainless steel material options
Zinc-plated surface for enhanced corrosion resistance

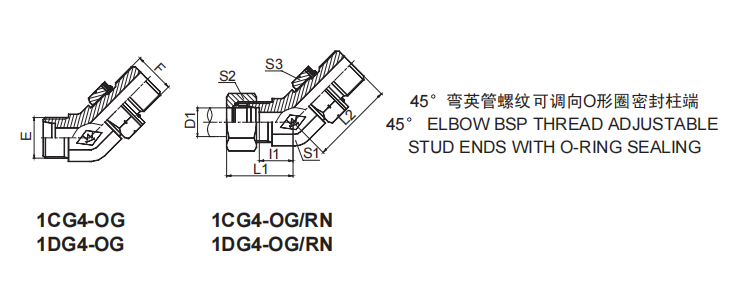

| PART NO. | T H R E A D | TUBE O.D. | D I M E N S I O N S | MPa | |||||||||
| E | F | D1 | I1 | L1 | L2 | S1 | S2 | S3 | |||||
| 1CG4-12-02OG | M12X1.5 | G1/8"X28 | 6 | 10 | 25 | 24 | 11 | 14 | 14 | ||||
| 1CG4-14-04OG | M14X1.5 | G1/4"X19 | 8 | 11 | 26 | 27 | 14 | 17 | 19 | ||||
| 1CG4-16-04OG | M16X1.5 | G1/4"X19 | 10 | 12.3 | 27.3 | 27 | 16 | 19 | 19 | 31.5 L | |||
| 1CG4-16-06OG | M16X1.5 | G3/8"X19 | 10 | 12.3 | 27.3 | 30 | 16 | 19 | 22 | ||||
| 1CG4-18-06OG | M18X1.5 | G3/8"X19 | 12 | 13 | 28 | 31 | 19 | 22 | 22 | ||||
| 1CG4-22-08OG | M22X1.5 | G1/2"X14 | 15 | 15 | 30 | 36 | 22 | 27 | 27 | ||||
| 1CG4-26-08OG | M26X1.5 | G1/2"X14 | 18 | 16.5 | 33 | 37.5 | 27 | 32 | 27 | ||||
| 1CG4-26-12OG | M26X1.5 | G3/4"X14 | 18 | 16.5 | 33 | 42 | 27 | 32 | 32 | ||||
| 1CG4-30-12OG | M30X2 | G3/4"X14 | 22 | 19.7 | 36.2 | 42.5 | 30 | 36 | 32 | 16 L | |||
| 1CG4-36-16OG | M36X2 | G1"X11 | 28 | 21.5 | 38 | 44.5 | 36 | 41 | 41 | ||||
| 1CG4-45-20OG | M45X2 | G1.1/4"X11 | 35 | 25.5 | 47 | 50.5 | 48 | 50 | 50 | ||||
| 1DG4-14-04OG | M14X1.5 | G1/4"X19 | 6 | 13 | 28 | 27 | 14 | 17 | 19 | ||||
| 1DG4-16-04OG | M16X1.5 | G1/4"X19 | 8 | 13.3 | 28.3 | 27 | 16 | 19 | 19 | 63 S | |||
| 1DG4-18-06OG | M18X1.5 | G3/8"X19 | 10 | 13.5 | 30 | 31 | 19 | 22 | 22 | ||||
| 1DG4-20-06OG | M20X1.5 | G3/8"X19 | 12 | 13.5 | 30 | 31 | 19 | 24 | 22 | ||||
| 1DG4-22-08OG | M22X1.5 | G1/2"X14 | 14 | 16.3 | 34.3 | 36 | 22 | 27 | 27 | ||||
| 1DG4-24-08OG | M24X1.5 | G1/2"X14 | 16 | 16.2 | 34.7 | 36.5 | 24 | 30 | 27 | 40 S | |||
| 1DG4-30-12OG | M30X2 | G3/4"X14 | 20 | 18.7 | 40.2 | 42.5 | 30 | 36 | 32 | ||||
| 1DG4-36-16OG | M36X2 | G1"X11 | 25 | 21 | 45 | 44.5 | 36 | 46 | 41 | ||||
| 1DG4-42-20OG | M42X2 | G1.1/4"X11 | 30 | 24.3 | 50.8 | 47.5 | 41 | 50 | 50 | ||||
| Note:In case if you are interested to order the adapter in complete set with cutting ring and nut it is necessary to insert suffix "RN"after our part no.,for example 1CG4-30-12OG/RN. | |||||||||||||
The 1CG4-OG / 1DG4-OG Series fittings are widely used in hydraulic power units, construction machinery, agricultural equipment, industrial automation systems, machine tools, mobile hydraulic equipment, and fluid transmission systems. Their adjustable stud design and reliable O-ring sealing provide flexible installation and dependable performance in medium and high-pressure hydraulic applications.
