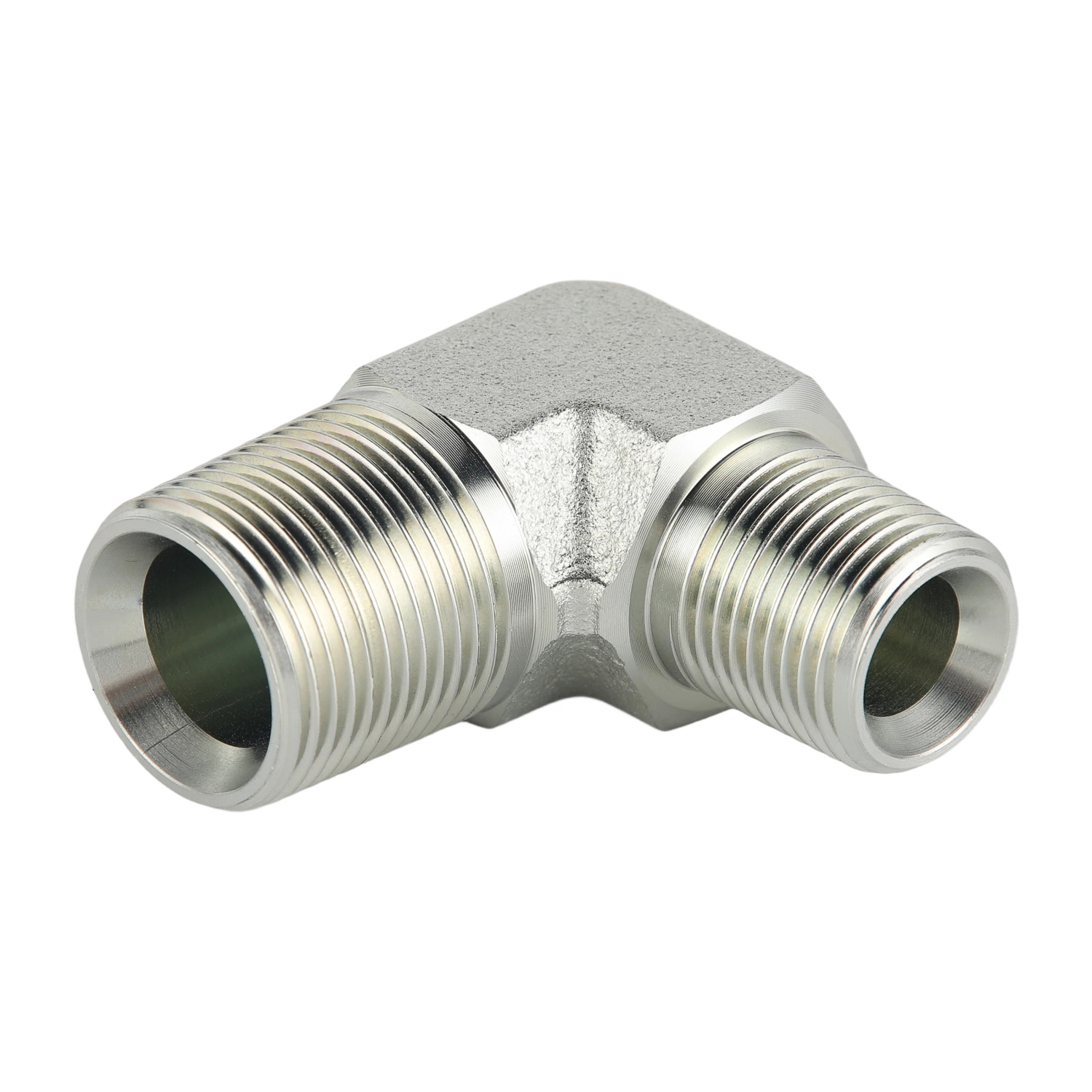

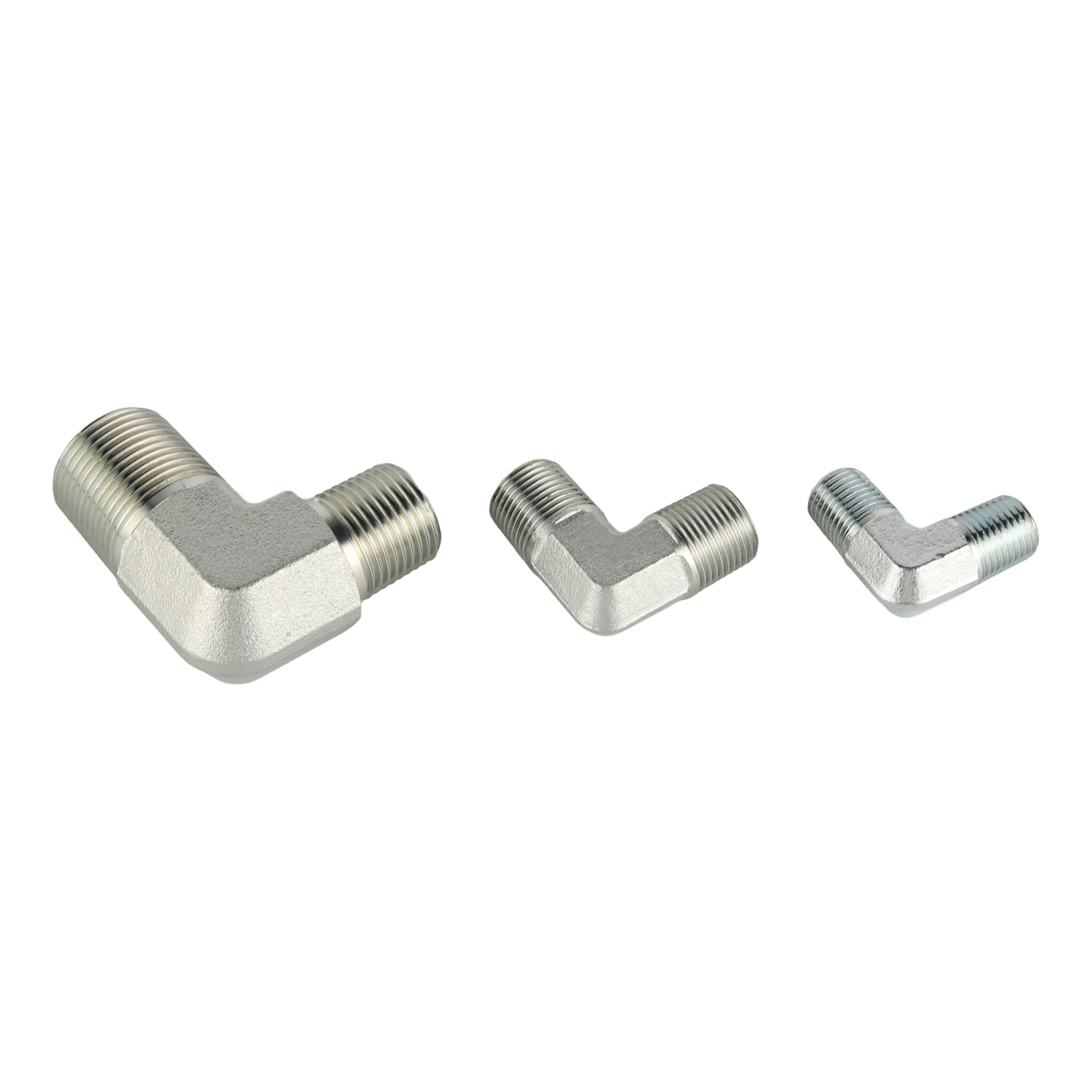

1T9-SP 90° Elbow BSPT Male Hydraulic Fitting

The 1T9-SP series is a high-precision 90° elbow fitting designed for hydraulic, gas and water piping systems. The fitting features BSPT (British Standard Pipe Taper) male thread connection, making it suitable for applications requiring tapered pipe thread connections.

The 90° elbow design allows pipelines to change direction while maintaining a compact installation structure. Manufactured from carbon steel and stainless steel materials, including 316 stainless steel options, these fittings are suitable for various industrial applications requiring durable threaded connections.

With accurate thread machining and reliable construction, the 1T9-SP series provides a practical connection solution for hydraulic equipment, piping systems and fluid power applications.

Availability:

Quantity:



Inquire Add to Basket

Product Description

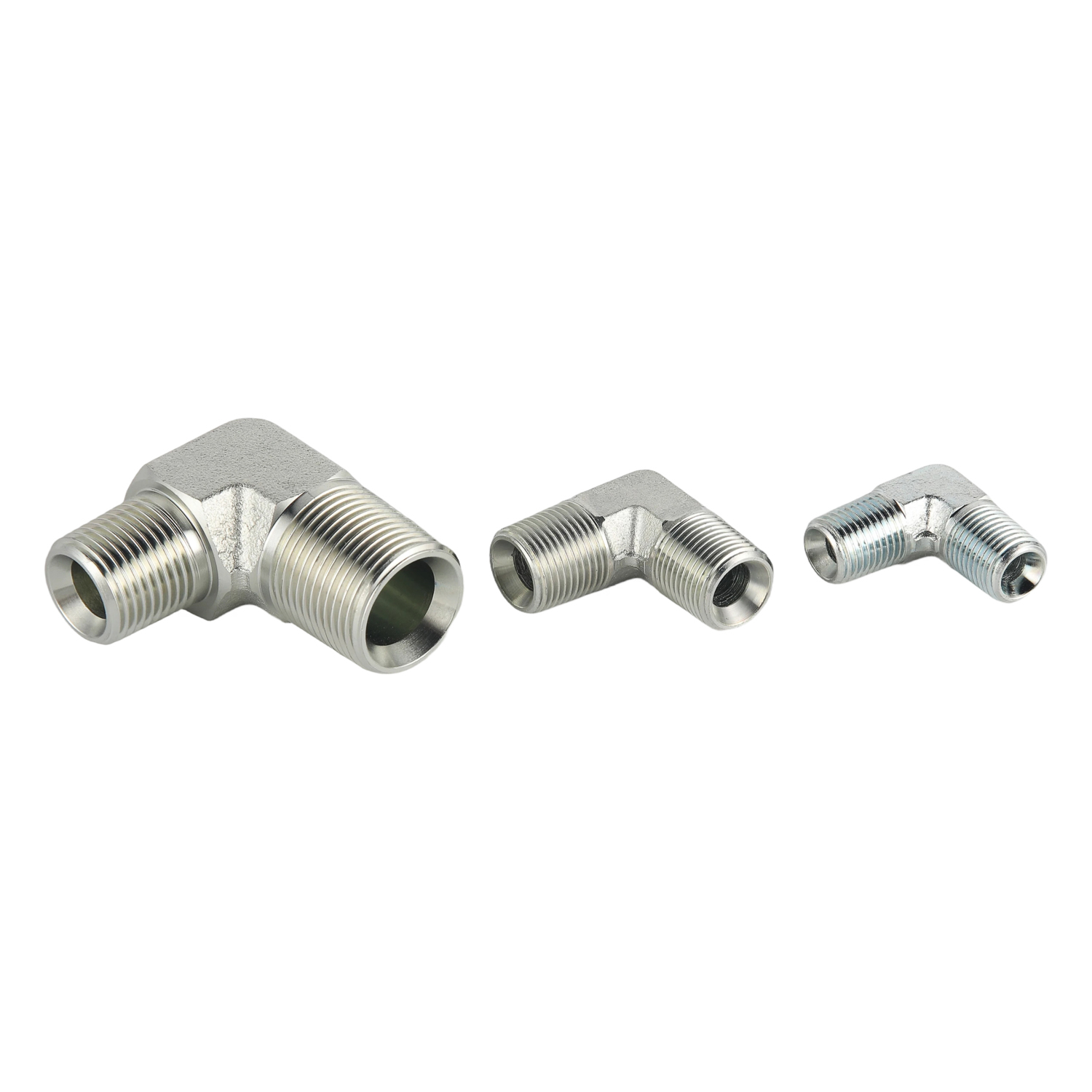

Product Overview

The 1T9-SP series is a high-precision 90° elbow fitting designed for hydraulic, gas and water piping systems. The fitting features BSPT (British Standard Pipe Taper) male thread connection, providing a reliable threaded connection solution for industrial piping applications.

1T9

The 90° elbow configuration allows pipelines to change direction while maintaining a compact installation layout. This design is widely used in applications where space optimization and flexible pipe routing are required.

Available in carbon steel and stainless steel materials, including 316 stainless steel options, the 1T9-SP series is manufactured with precision machining processes to ensure accurate thread dimensions and consistent connection performance.

Features

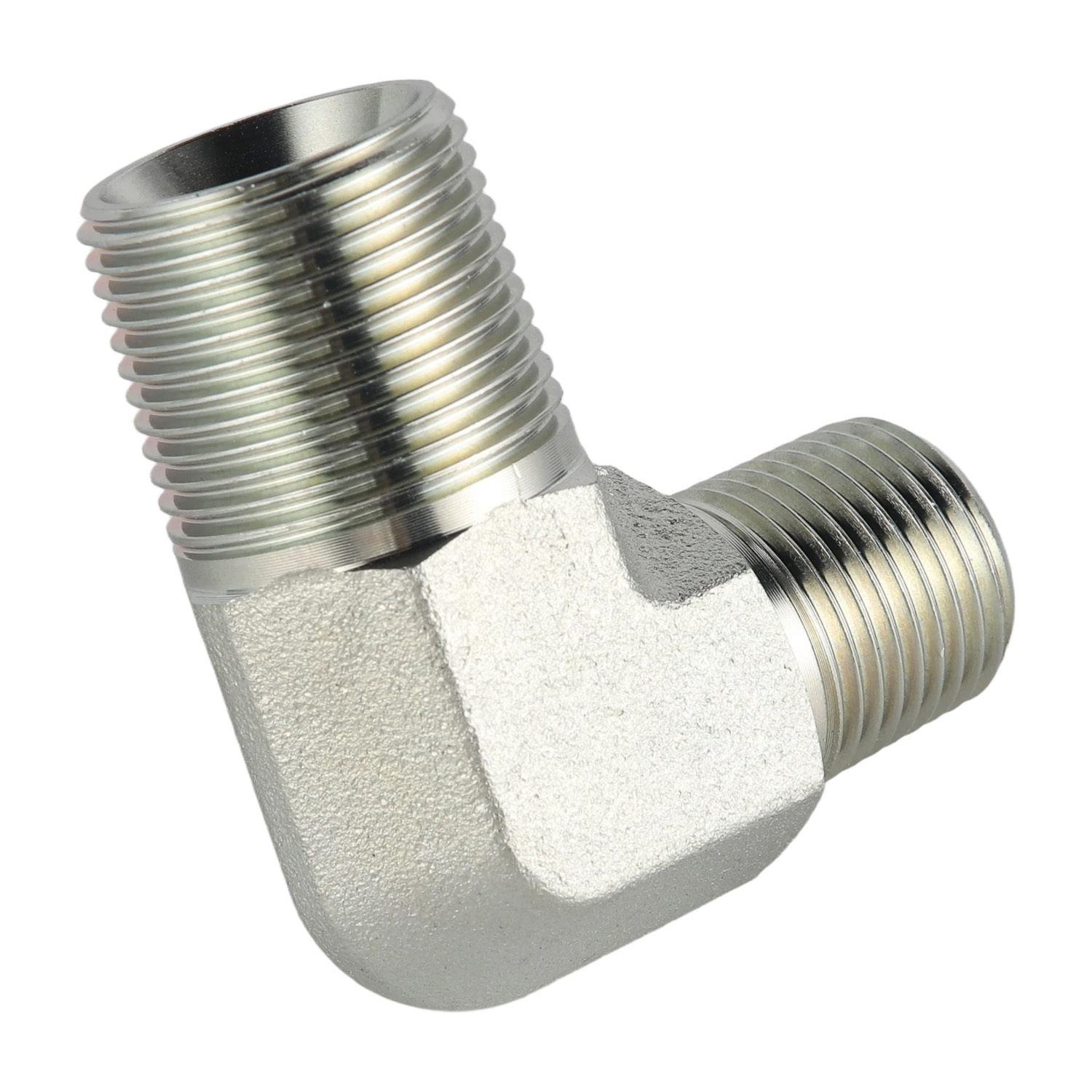

1. 90° Elbow Design

The 90° elbow structure enables efficient changes in pipeline direction and provides flexibility for installation in limited spaces.

2. BSPT Male Thread Connection

The BSPT male thread follows British Standard Pipe Taper specifications and provides compatibility with corresponding BSPT threaded components.

Typical thread sizes include R1/8", R1/4", and other BSPT specifications according to product configuration.

3. Material Options and Manufacturing Quality

The 1T9-SP elbows are available in carbon steel and stainless steel materials, including 316SS options, to meet different application requirements.

Precision manufacturing ensures consistent dimensions and reliable performance for industrial applications.

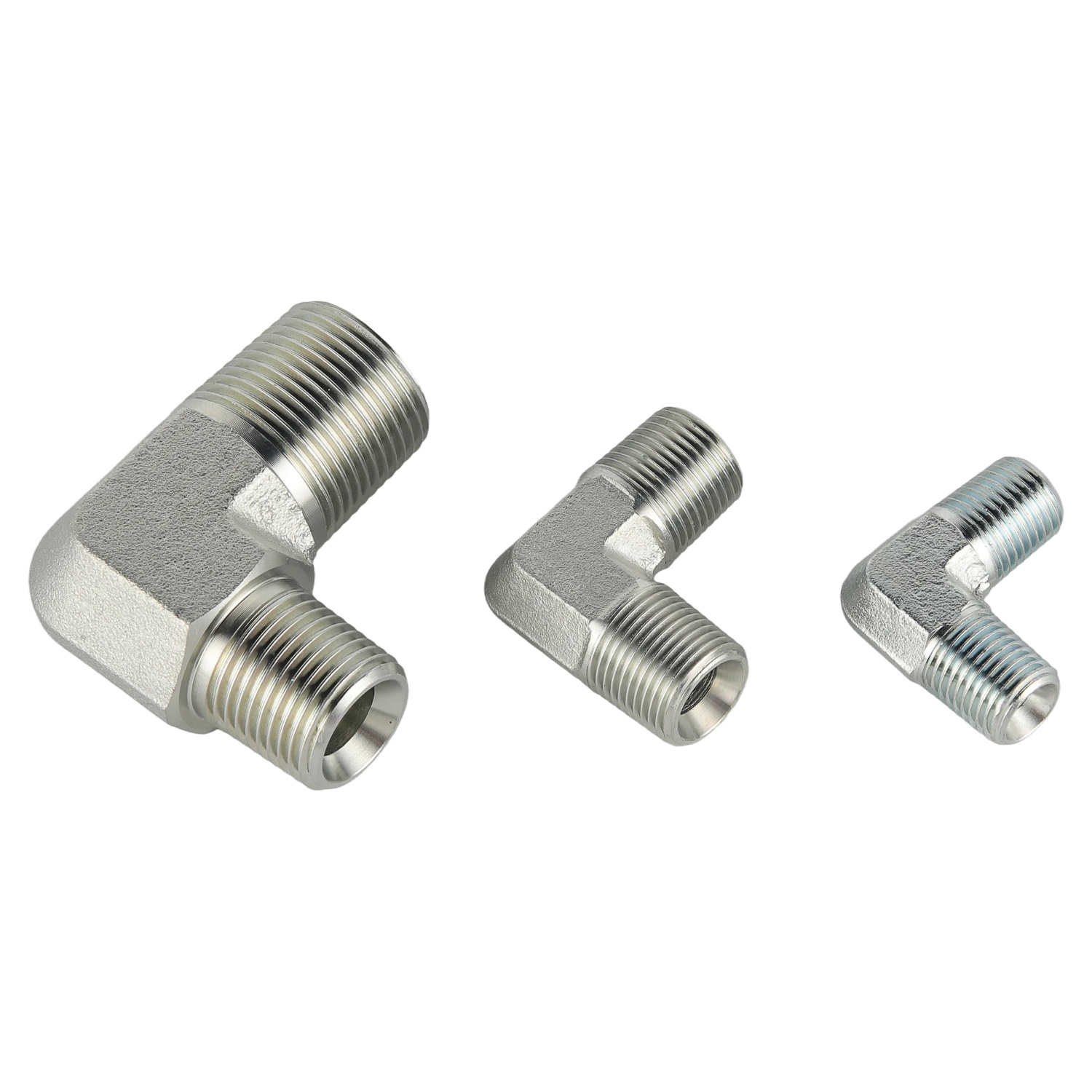

4. Hexagon Head Design

The optional hexagon head design allows easy wrench installation and tightening during assembly.

Specifications

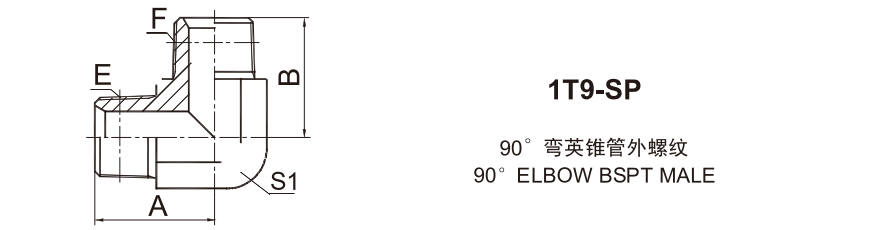

PART NO.	T H R E A D		DIMENSIONS
	E	F	A	B	S1
1T9-02SP	R1/8"X28	R1/8"×28	21	21	11
1T9-02-04SP	R1/8"X28	R1/4"×19	23.5	25.5	14
1T9-04SP	R1/4"×19	R1/4"×19	25.5	25.5	14
1T9-04-06SP	R1/4"×19	R3/8"×19	26.5	28.5	16
1T9-04-08SP	R1/4"×19	R1/2"×14	30.5	36	22
1T9-06SP	R3/8"×19	R3/8"X19	28.5	28.5	16
1T9-06-08SP	R3/8"X19	R1/2"X14	32.5	36	22
1T9-08SP	R1/2"X14	R1/2"×14	36	36	22
1T9-08-12SP	R1/2"X14	R3/4"X14	39.5	43.5	27
1T9-12SP	R3/4"×14	R3/4"X14	43.5	43.5	27
1T9-12-16SP	R3/4"X14	R1"×11	48	50	33
1T9-16SP	R1"×11	R1"×11	50	50	33
1T9-16-20SP	R1"X11	R1.1/4"X11	56.5	57.5	41
1T9-20SP	R1.1/4"×11	R1.1/4"X11	57.5	57.5	41
1T9-24SP	R1.1/2"X11	R1.1/2"×11	62.5	62.5	48
1T9-32SP	R2"×11	R2"×11	68	75	63
