Product Overview
Overview

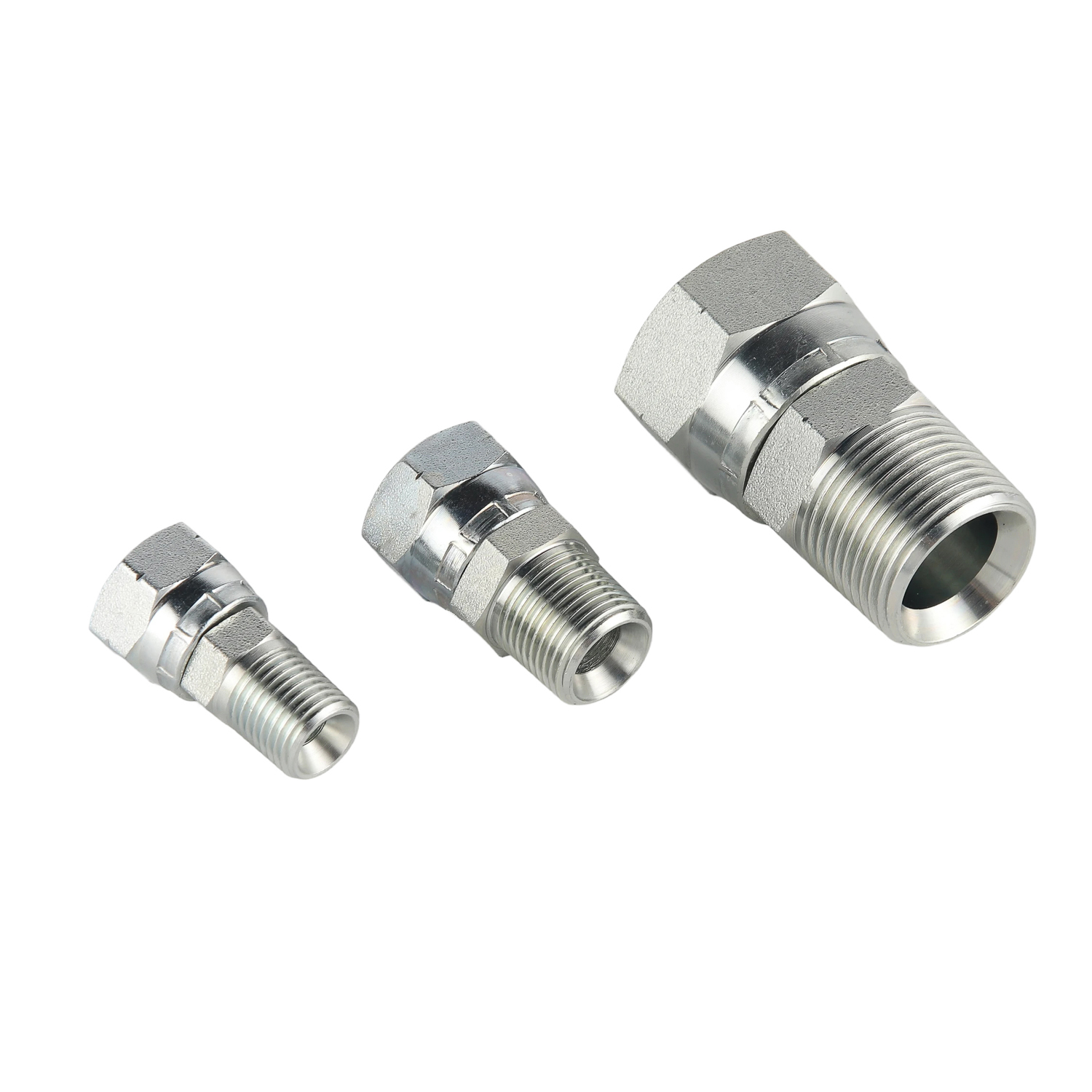

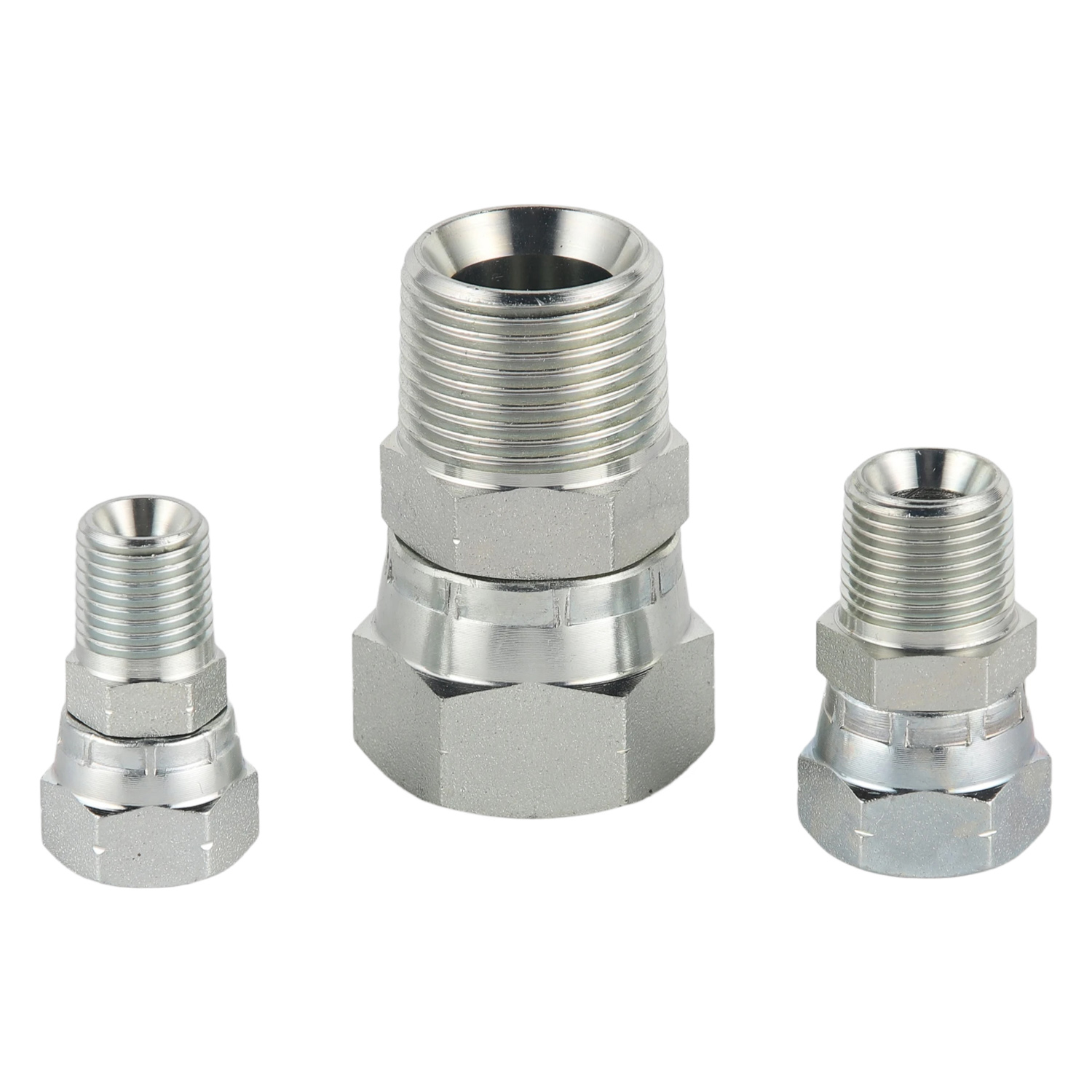

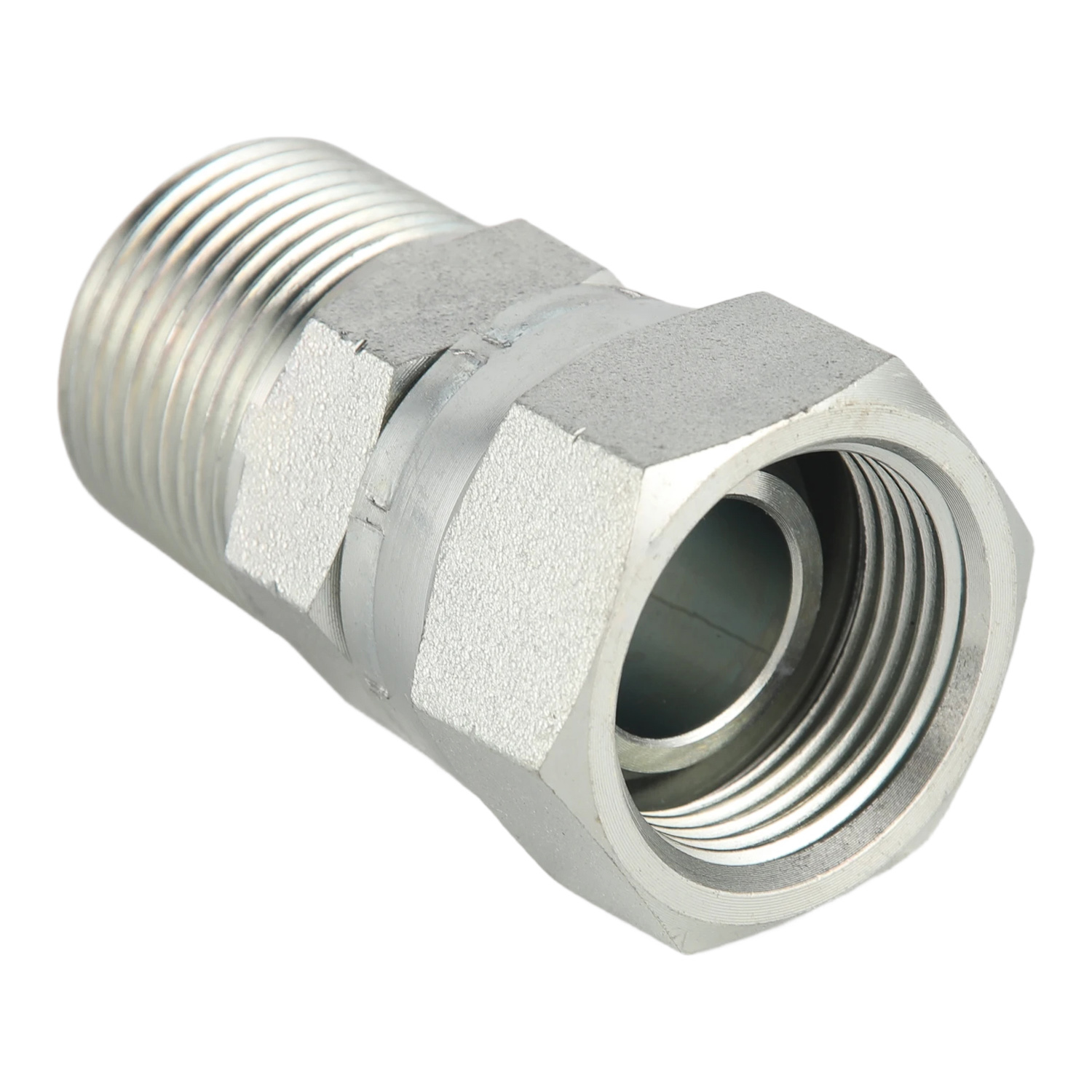

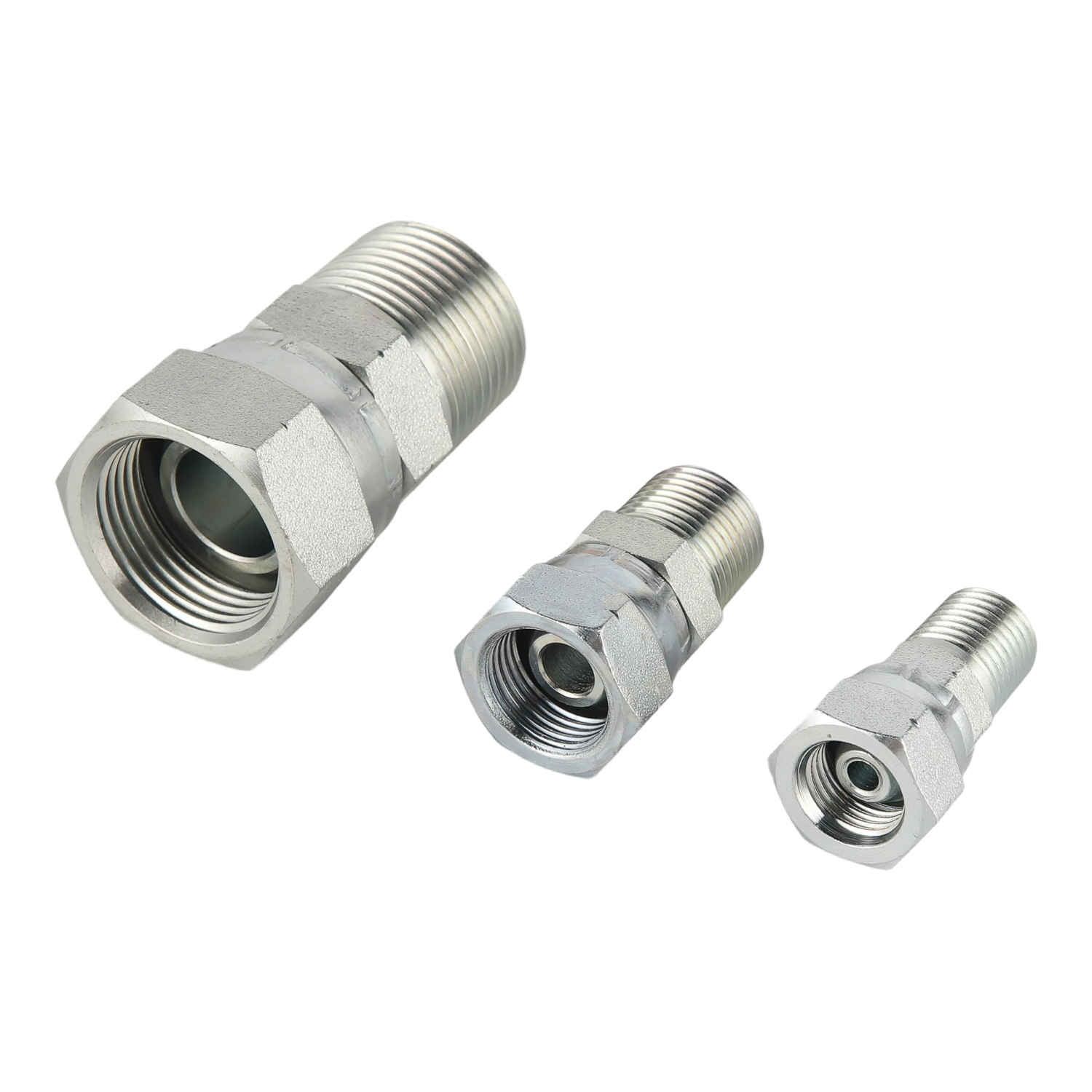

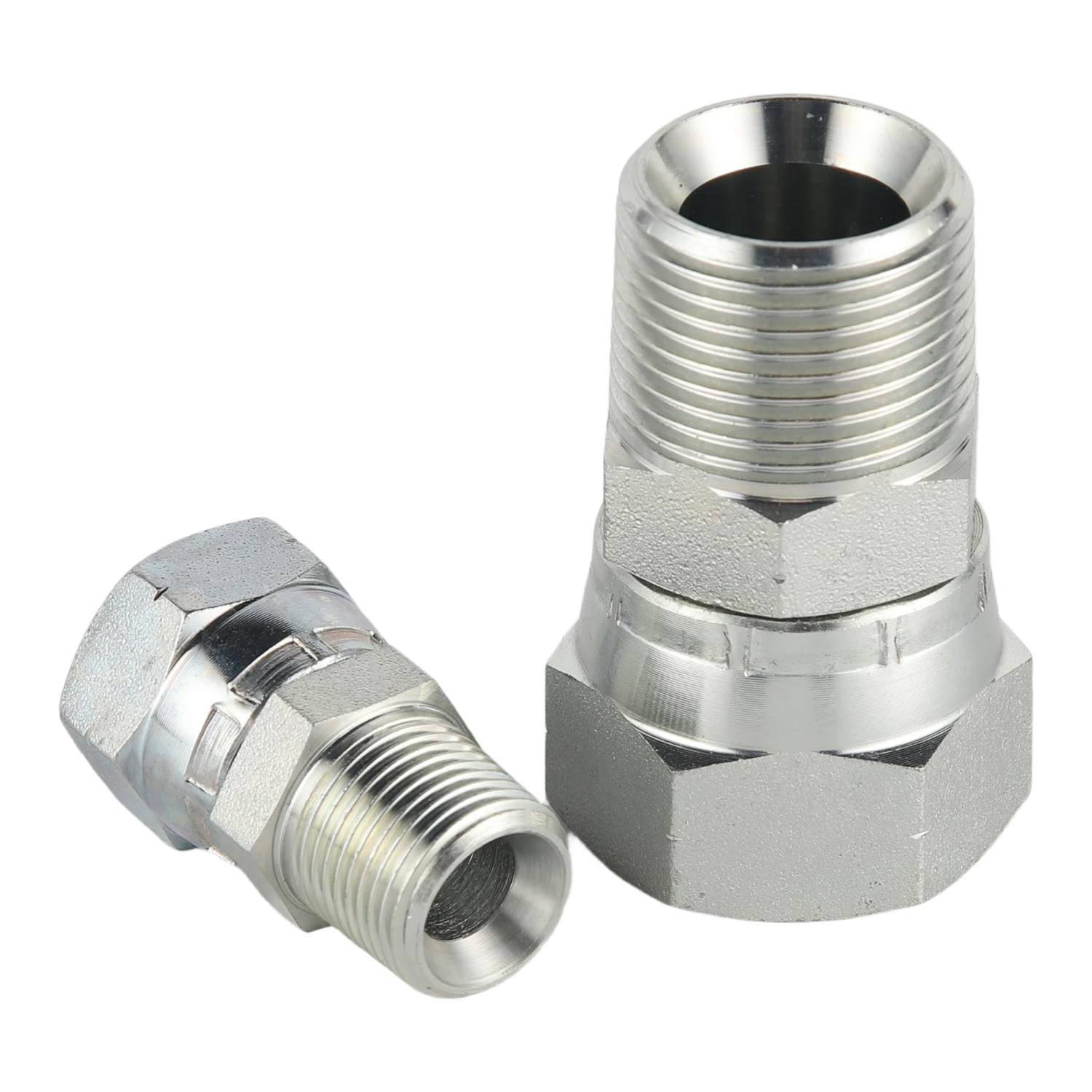

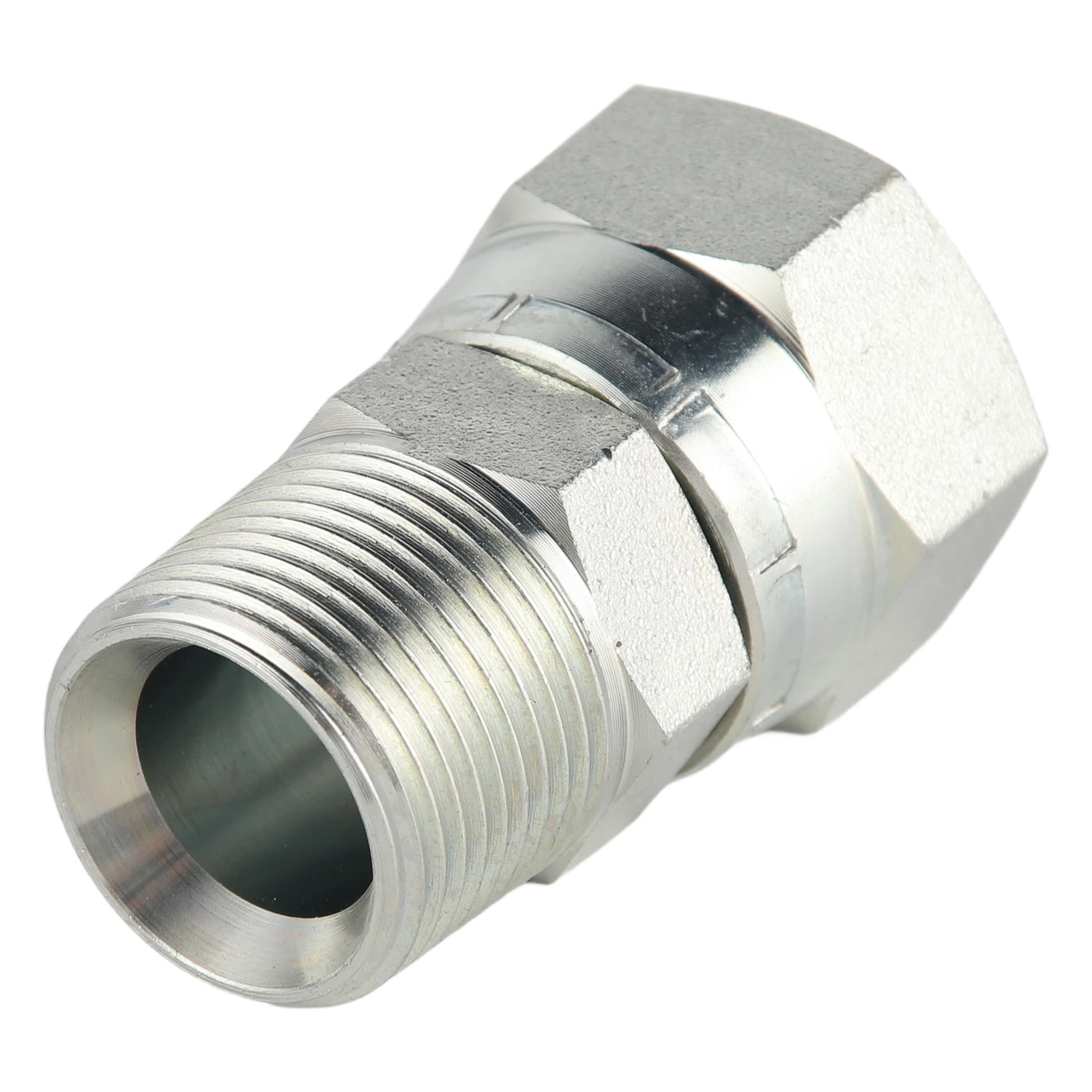

The 2TB-SP is a BSP hydraulic adapter designed to connect hydraulic components with BSPT male and BSP female 60° cone interfaces.
The adapter combines a tapered male pipe thread connection with a female 60° cone sealing connection, providing a compact connection solution for hydraulic systems using British Standard Pipe thread configurations.
fluid power systems.
Features and Benefits
1. BSPT Male Thread Connection
The BSPT male end is designed according to British Standard Pipe Taper thread specifications and is used for connection with compatible female threaded ports.
2. BSP Female 60° Cone Seal
The female end features a 60° cone sealing design, providing a standard sealing interface for BSP hydraulic connections.
3. Compact Adapter Design
The compact adapter design allows connection between hydraulic components with different BSP thread configurations while maintaining a simple installation structure.
4.Material and Surface Treatment
The adapter is available in carbon steel with protective surface treatment. Stainless steel options can be supplied according to customer requirements.
Specifications
| PART NO. | THREAD |
| DIMENSIONS |
| E | F |
|
| A | B | L | S1 | S2 |
| 2TB-02SP | R1/8"X28 | G1/8"X28 |
|
| 10 | 5.5 | 25 | 12 | 14 |
| 2TB-04SP | R1/4"X19 | G1/4"X19 |
|
| 14.5 | 5.5 | 31.5 | 17 | 19 |
| 2TB-06SP | R3/8"X19 | G3/8"X19 |
|
| 15 | 6.3 | 33 | 19 | 22 |
| 2TB-06-04SP | R3/8"X19 | G1/4"X19 |
|
| 15 | 5.5 | 32 | 19 | 19 |
| 2TB-06-08SP | R3/8"X19 | G1/2"X14 |
|
| 15 | 7.5 | 35 | 19 | 27 |
| 2TB-08SP | R1/2"X14 | G1/2"X14 |
|
| 20 | 7.5 | 42 | 2 | 27 |
| 2TB-08-06SP | R1/2"X14 | G3/8"X19 |
|
| 20 | 6.3 | 40 | 22 | 22 |
| 2TB-08-12SP | R1/2"X14 | G3/4"X14 |
|
| 20 | 10.9 | 45 | 27 | 32 |
| 2TB-12SP | R3/4"X14 | G3/4"X14 |
|
| 20 | 10.9 | 45 | 30 | 32 |
| 2TB-12-08SP | R3/4"X14 | G1/2"X14 |
|
| 3o | 7.5 | 44 | 30 | 27 |
| 2TB-12-16SP | R3/4"X14 | G1"X11 |
|
| 20 | 11.7 | 47 | 32 | 41 |
| 2TB-16SP | R1"X11 | G1"X11 |
|
| 25.5 | 11.7 | 52.5 | 36 | 41 |
| 2TB-16-12SP | R1"X11 | G3/4"X14 |
|
| 25.5 | 10.9 | 51.5 | 36 | 32 |
| 2TB-20-16SP | R1.1/4"X11 | G1"X11 |
|
| 26.5 | 11.7 | 55.5 | 46 | 41 |
| 2TB-20SP | R1.1/4”X11 | G1.1/4"X11 |
|
| 26.5 | 11 | 59 | 46 | 50 |
| 2TB-24SP | R1.1/2"X11 | G1.1/2"X11 |
|
| 26.5 | 13 | 61.5 | 50 | 55 |
| 2TB-32SP | R2"X11 | G2"X11 |
|
| 30 | 16 | 68 | 65 | 70 |
Applications
The 2TB-SP hydraulic adapter is commonly used in:
Hydraulic systems
Industrial machinery
Construction equipment
Agricultural machinery
Hydraulic hose assemblies
Fluid power equipment
