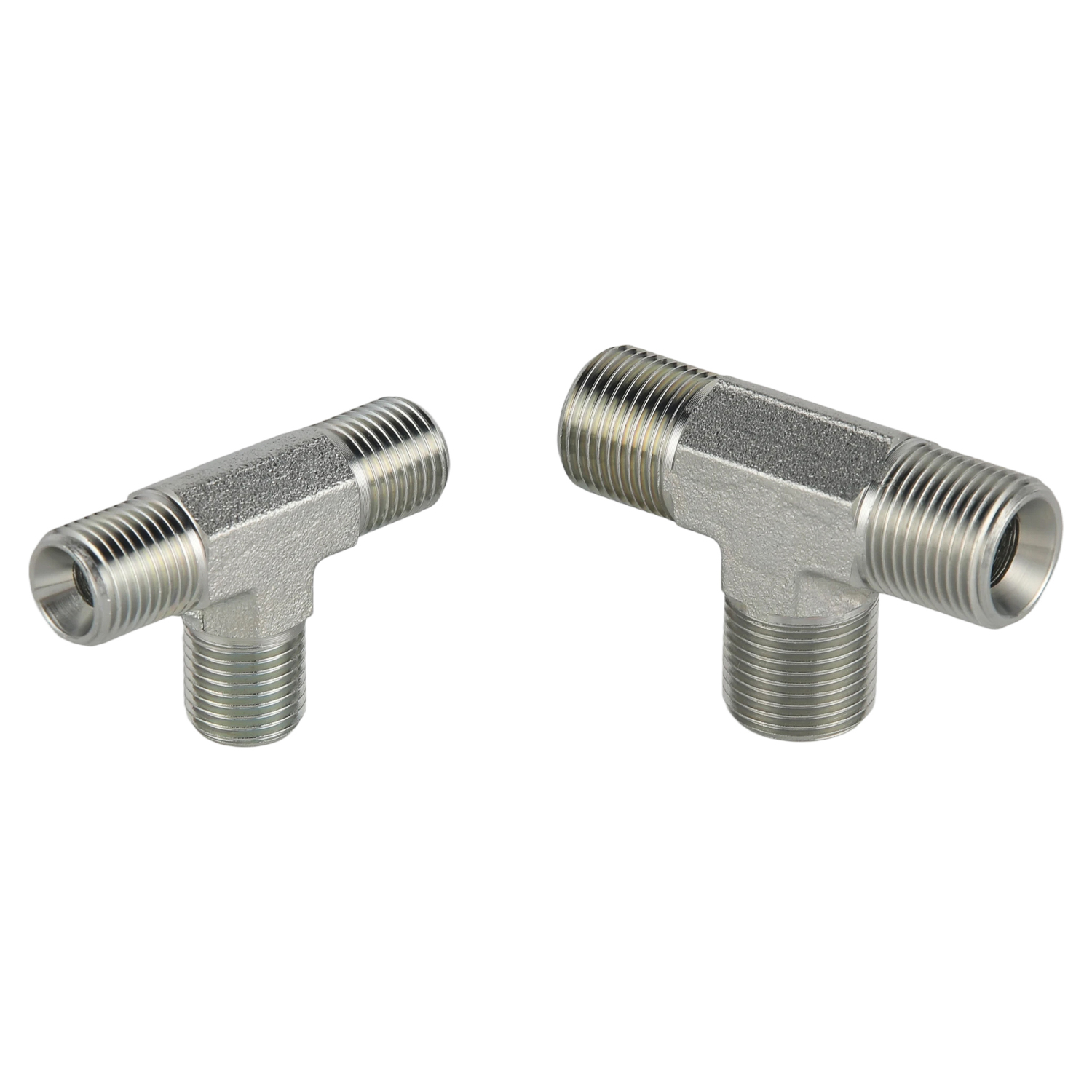

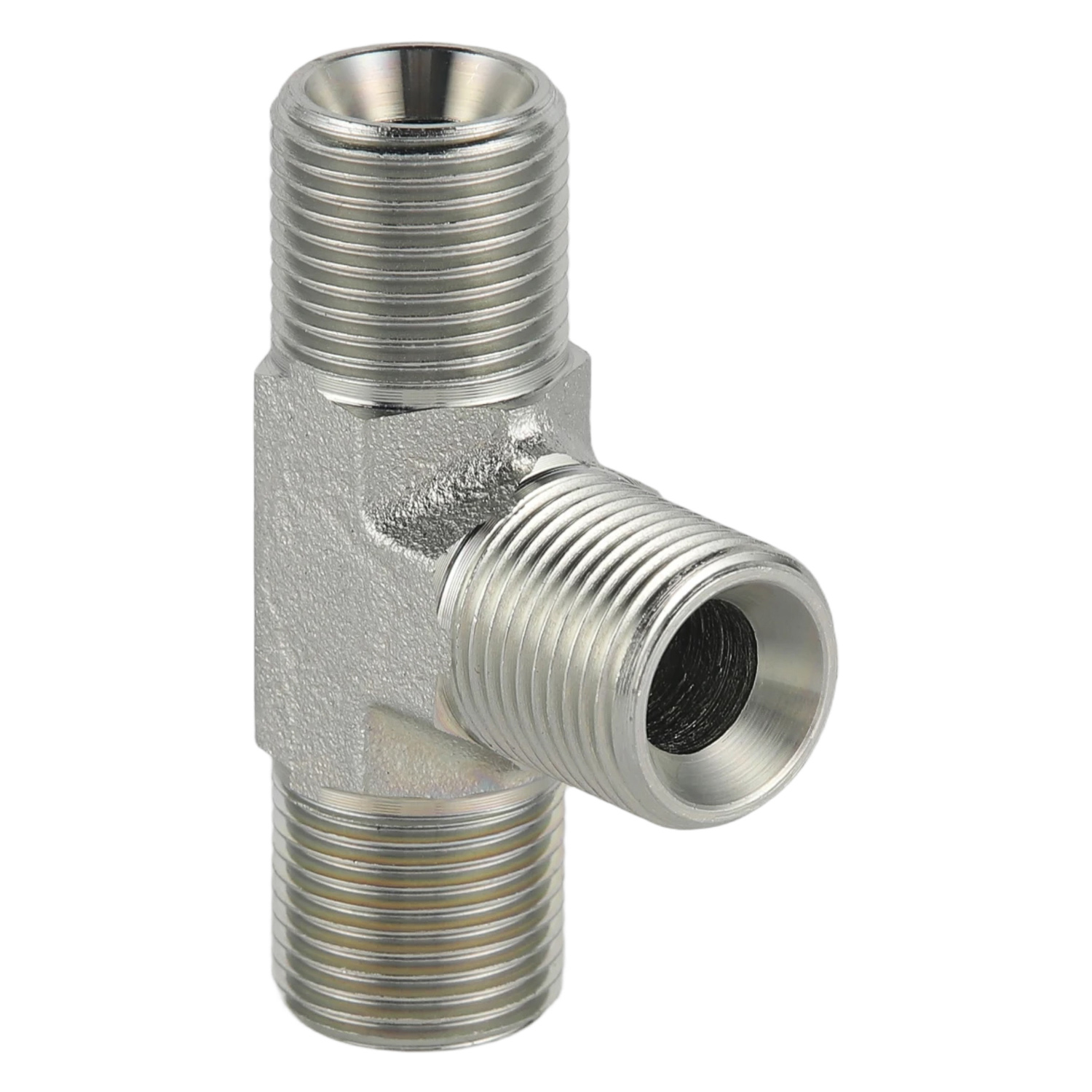

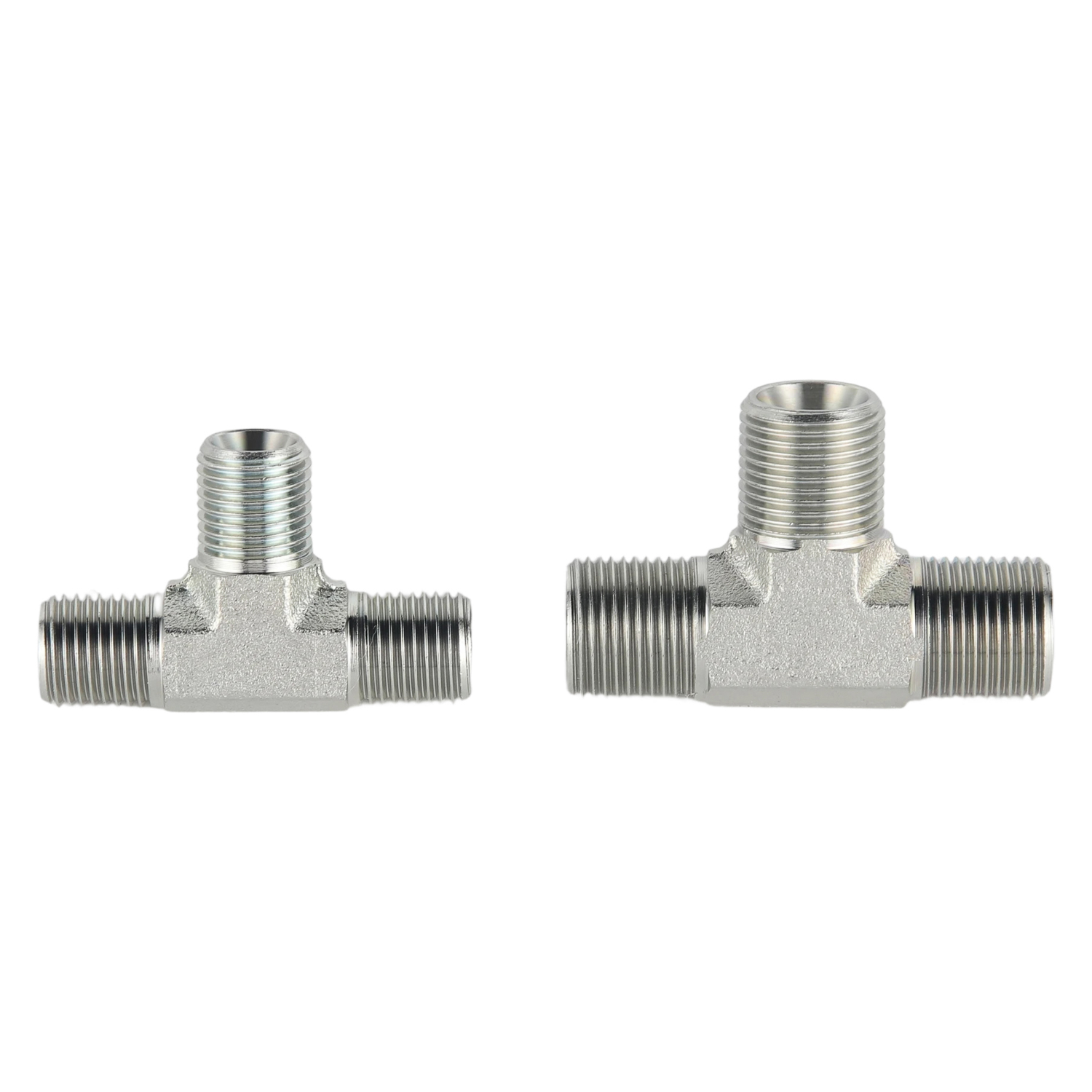

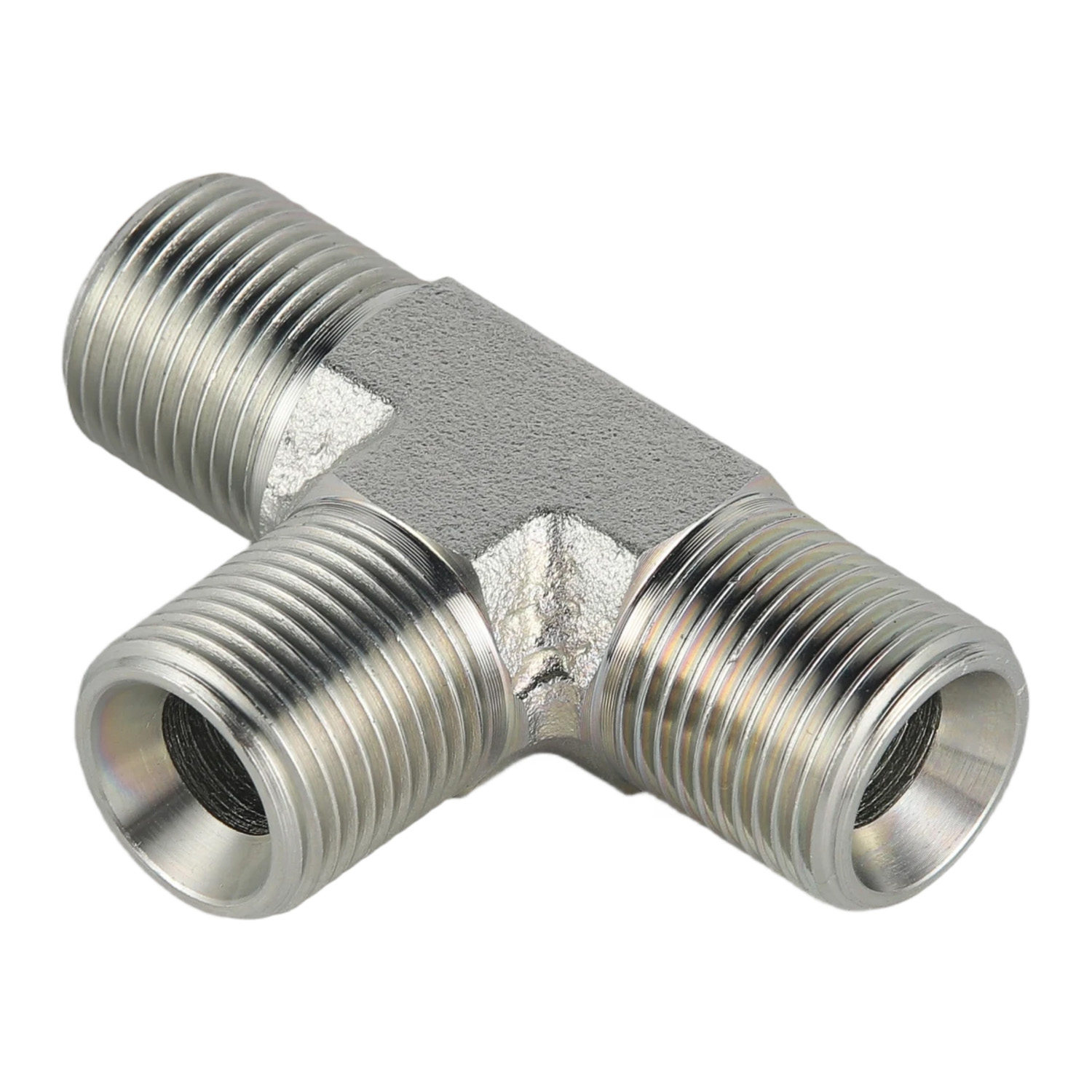

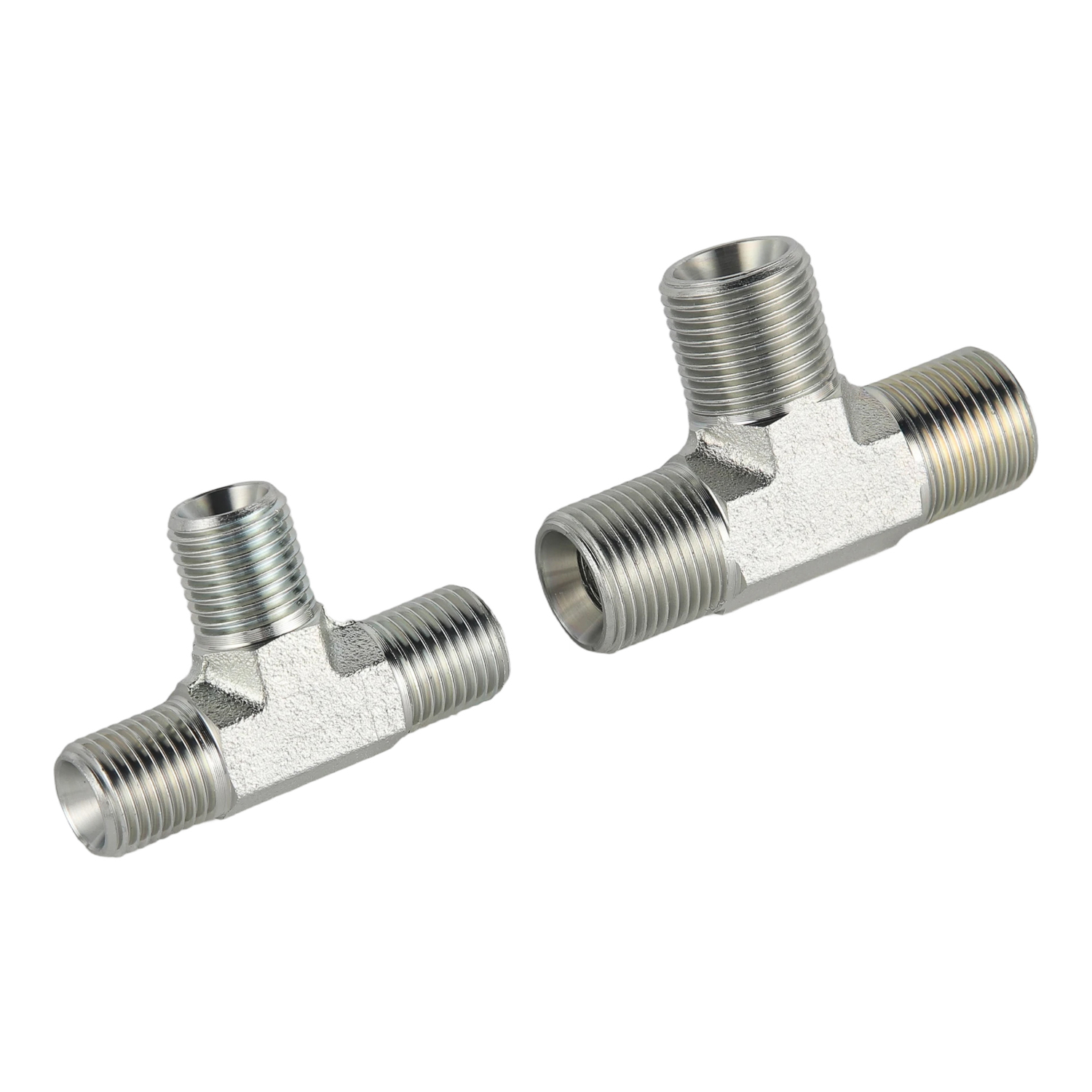

The AB Series BSP Male 60° Seat Tee is designed to distribute or combine hydraulic fluid through a compact three-way connection. Each port features a BSP male thread with a precision-machined 60° cone sealing seat, ensuring accurate alignment and dependable leak-free performance when assembled with matching BSP female connectors.
The tee design simplifies hydraulic pipeline layouts and reduces the number of connection components required, improving overall system efficiency. Precision machining provides excellent dimensional accuracy and reliable sealing under medium and high-pressure operating conditions.
Manufactured from premium carbon steel or stainless steel, these fittings offer excellent mechanical strength and corrosion resistance. White zinc plating further enhances surface protection, making the fittings suitable for long-term use in hydraulic equipment, industrial machinery, construction equipment, agricultural machinery, and fluid transmission systems.
Three BSP male threaded ports
Precision 60° cone sealing seats for reliable metal-to-metal sealing
Tee configuration for fluid distribution or combination
Hexagonal body for easy wrench installation
White zinc-plated surface for improved corrosion resistance
High mechanical strength and pressure resistance
Available in carbon steel and stainless steel
Suitable for hydraulic and industrial piping systems

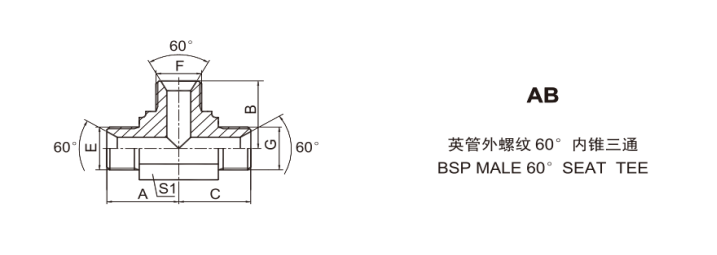

| PART NO. | T H R E A D | DIMENSIONS | |||||||||
| E | F | G | A | B | C | S1 | |||||
| AB-02 | G1/8"X28 | G1/8"X28 | G1/8"X28 | 19.8 | 19.8 | 19.8 | 11 | ||||
| AB-04 | G1/4"×19 | G1/4"×19 | G1/4"×19 | 24.5 | 24.5 | 24.5 | 14 | ||||
| AB-04-06-04 | G1/4"×19 | G3/8"X19 | G1/4"X19 | 26.5 | 27.5 | 26.5 | 16 | ||||
| AB-06-04-06 | G3/8"X19 | G1/4"X19 | G3/8"×19 | 27.5 | 26.5 | 27.5 | 16 | ||||
| AB-06 | G3/8"X19 | G3/8"X19 | G3/8"X19 | 27.5 | 27.5 | 27.5 | 16 | ||||
| AB-06-08-06 | G3/8"X19 | G1/2"X14 | G3/8"X19 | 31 | 34.5 | 31 | 22 | ||||
| AB-08-06-08 | G1/2"×14 | G3/8"×19 | G1/2"×14 | 34.5 | 31 | 34.5 | 22 | ||||
| AB-08 | G1/2"X14 | G1/2"X14 | G1/2"X14 | 34.5 | 34.5 | 34.5 | 22 | ||||
| AB-10 | G5/8"×14 | G5/8"×14 | G5/8"X14 | 35 | 35 | 35 | 22 | ||||
| AB-12 | G3/4"X14 | G3/4"X14 | G3/4"X14 | 40 | 40 | 40 | 27 | ||||
| AB-12-16-12 | G3/4"×14 | G1"X11 | G3/4"X14 | 43.5 | 46 | 43.5 | 33 | ||||
| AB-16-12-16 | G1"X11 | G3/4"X14 | G1"X11 | 46 | 43.5 | 46 | 33 | ||||
| AB-16 | G1"X11 | G1"X11 | G1"X11 | 46 | 46 | 46 | 33 | ||||
| AB-20 | G1.1/4"X11 | G1.1/4"X11 | G1.1/4"X11 | 50.5 | 50.5 | 50.5 | 41 | ||||
| AB-24 | G1.1/2"X11 | G1.1/2"X11 | G1.1/2"X11 | 57.5 | 57.5 | 57.5 | 48 | ||||
| AB-32 | G2"X11 | G2"X11 | G2"X11 | 72.5 | 72.5 | 72.5 | 63 | ||||
The AB Series BSP Male 60° Seat Tee is widely used in hydraulic power units, construction machinery, agricultural equipment, industrial automation systems, fluid transmission equipment, and general industrial piping. Its reliable 60° cone sealing design provides secure three-way connections for medium and high-pressure hydraulic applications.
